VCCX2 Controller Technical Guide

Return Air Temperature Sensor

G051240 (6 inch) or G051250 (12 inch) Return Air Temperature

Sensor must be wired as shown for proper operation. The Return

Air Temperature Sensor is a 10K Type III thermistor sensor. The

Return Air Temperature Sensor should be mounted in the return

air duct. If the system has a Zoning Bypass Damper installed, be

sure the return air sensor is located upstream of the bypass duct

connection. See Figure 13, this page for details.

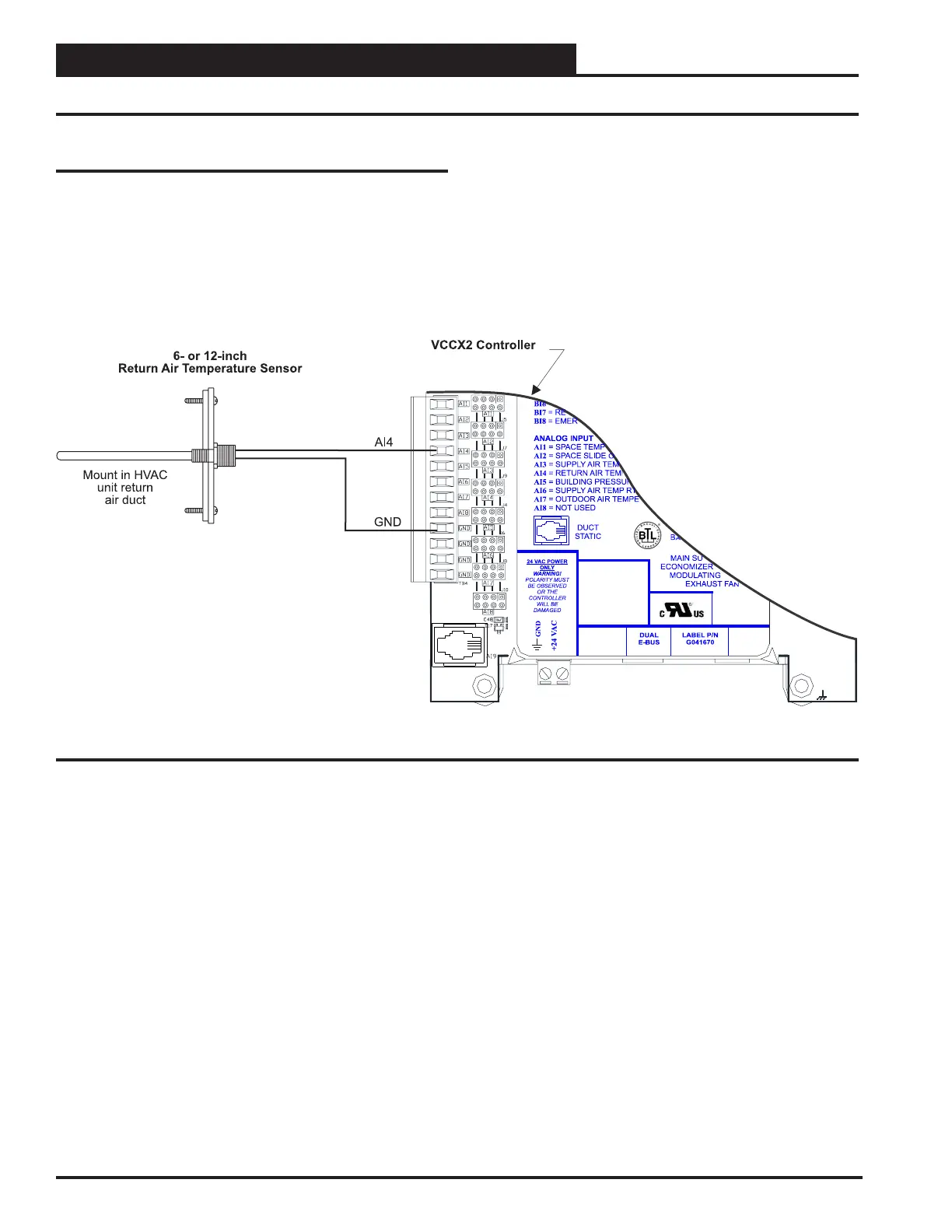

Figure 13: Return Air Temperature Sensor Wiring

WIRING

Return Air Temperature Sensor
