26

VCCX2 Controller Technical Guide

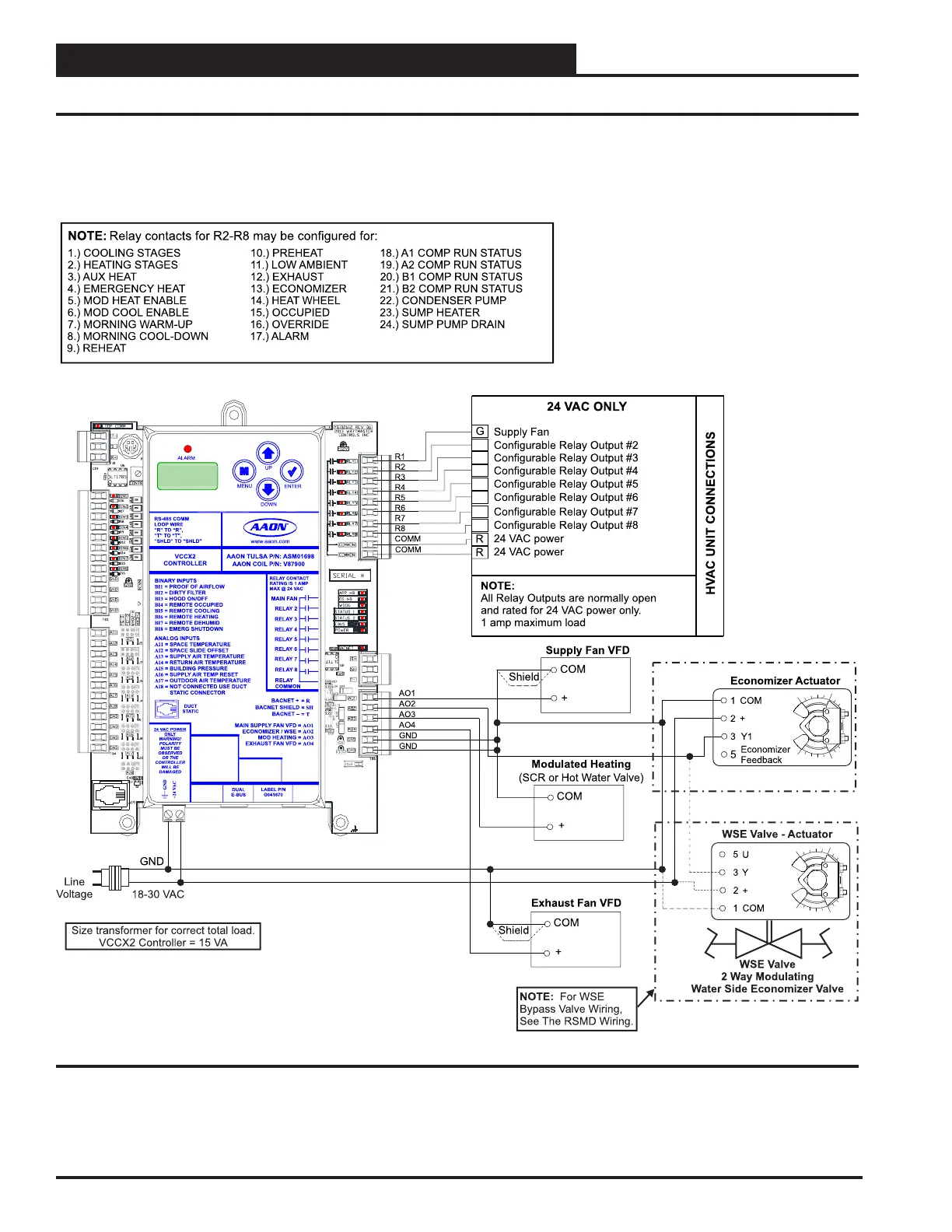

Figure 7: VCCX2 Controller Output Wiring

WIRING

VCCX2 Controller Outputs
