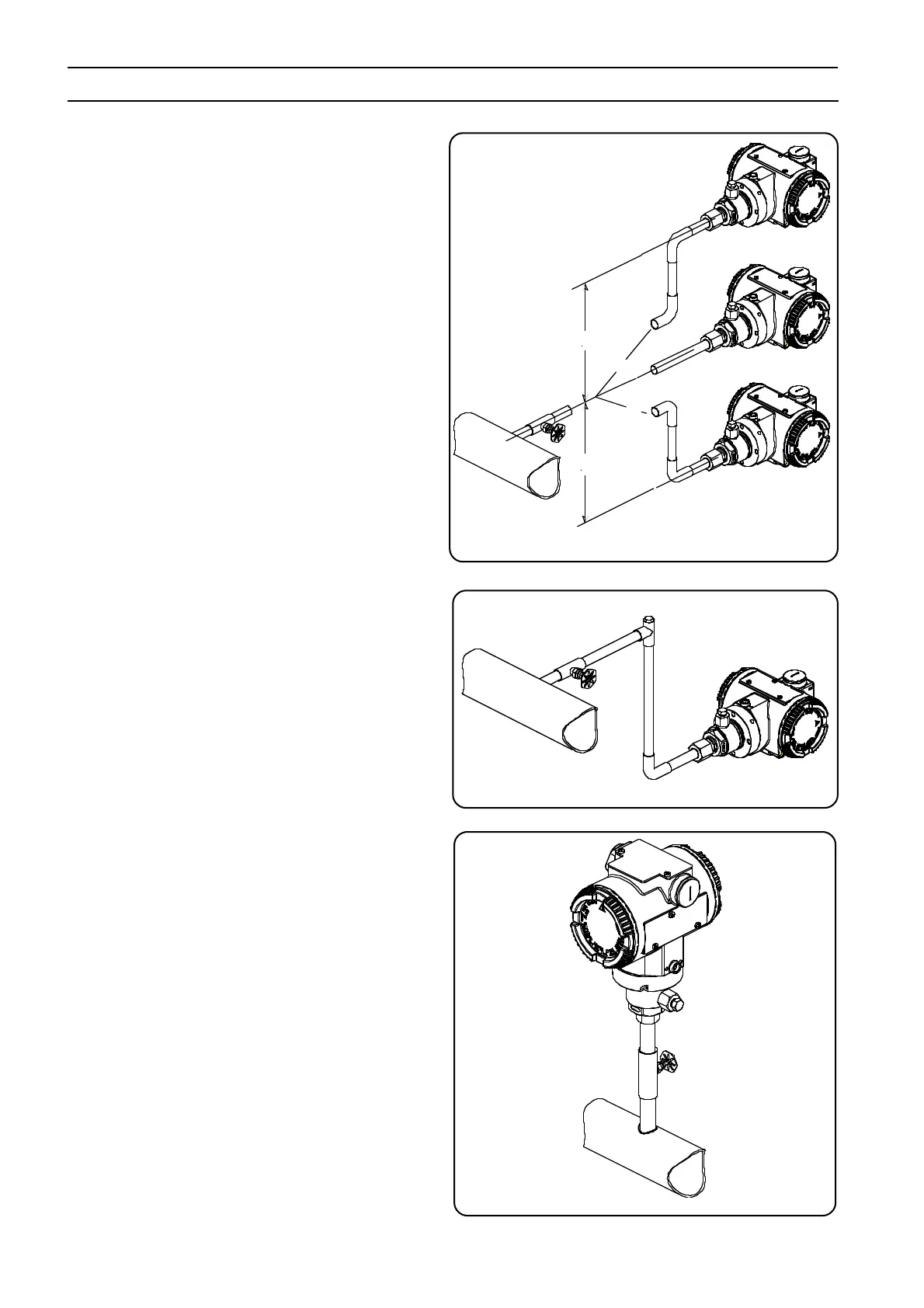

PHASE 2 - TRANSMITTER INSTALLATION
Dirty fluids
Pressure or absolute pressure measurement of a liquid in
a pipe
1. Place the tap at the side of the line.
2. Mount the transmitter beside or below the tap for clean
fluids, above the tap for dirty fluids.
3. Connect the transmitter to the pipe.
gate valve
Clean
fluids
Pressure or absolute pressure measurement of a
condensable vapor in a pipe
1. Place the tap at the side of the line.
2. Mount the transmitter below the tap.
3. Connect the transmitter to the pipe.
4. Fill the vertical section of the connecting line to the tap with
a compatible liquid through the dedicated filling tee.
gate
valve
Pressure or absolute pressure measurement of a gas in a
pipe
1. Place the tap at the top or side of the line.
2. Mount the transmitter beside or above the tap.
3. Connect the transmitter to the pipe.
gate
valve
filling
tee
vent
valve
