8.10 Fitting gas inlet casing, nozzle ring and insulation
(A175-L and smaller)
Fitting the nozzle ring
 Coat the screw threads with high-temperature grease.

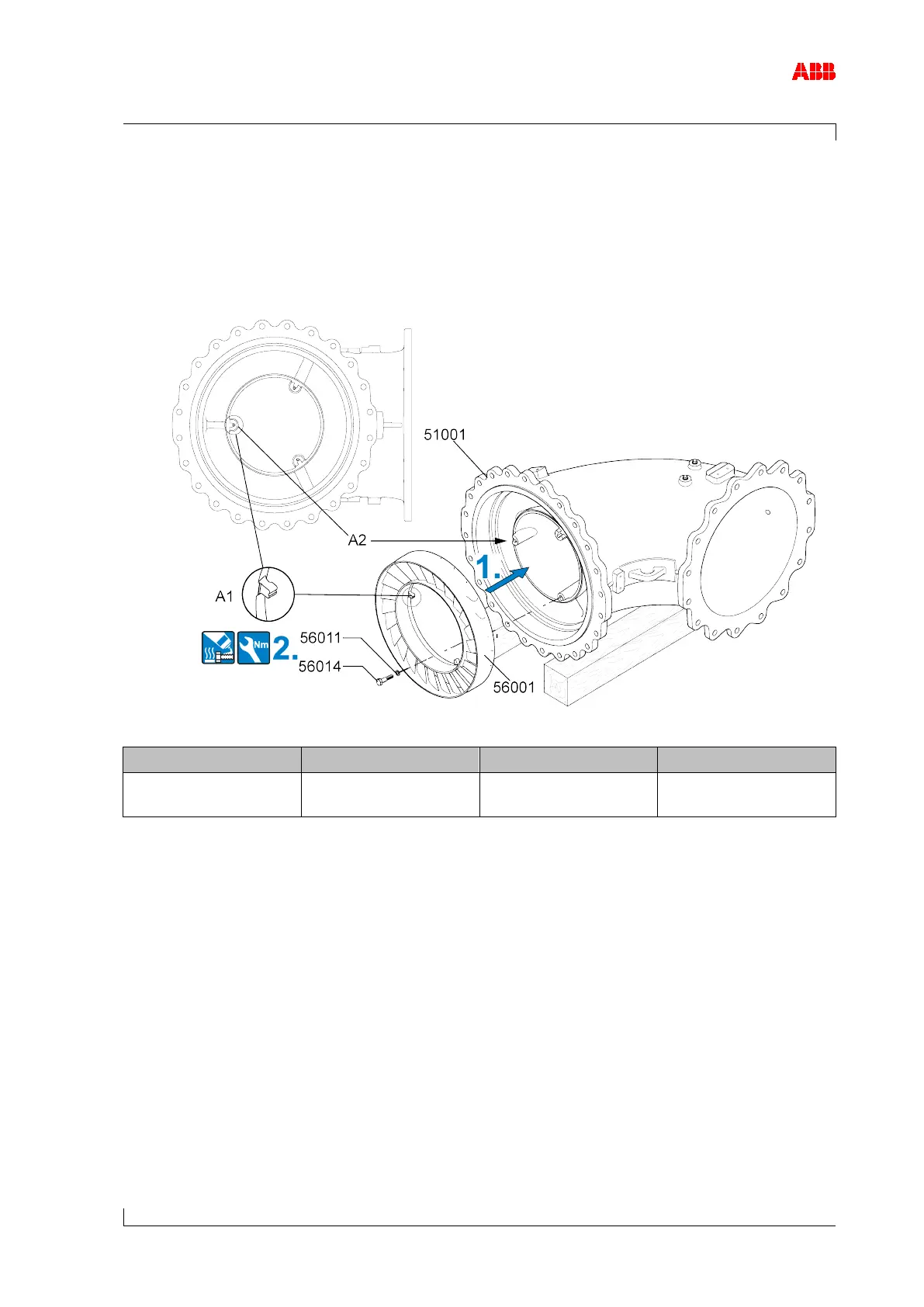

Figure 44: Fitting the nozzle ring (A175-L and smaller)
Part number
A165-L
A170-L
A175-L
56014
M10
35 Nm
M10
35 Nm
M10
35 Nm
Table 31: Tightening torque (56014)
1. Align the notch (A
1
) with the flange connection (A
2
) and slide the nozzle ring (56001) into
the gas inlet casing (51001).
2. Fit screws (56014) with high-temperature grease and with washers (56011).
