Suggestion for noise insulation, bellows

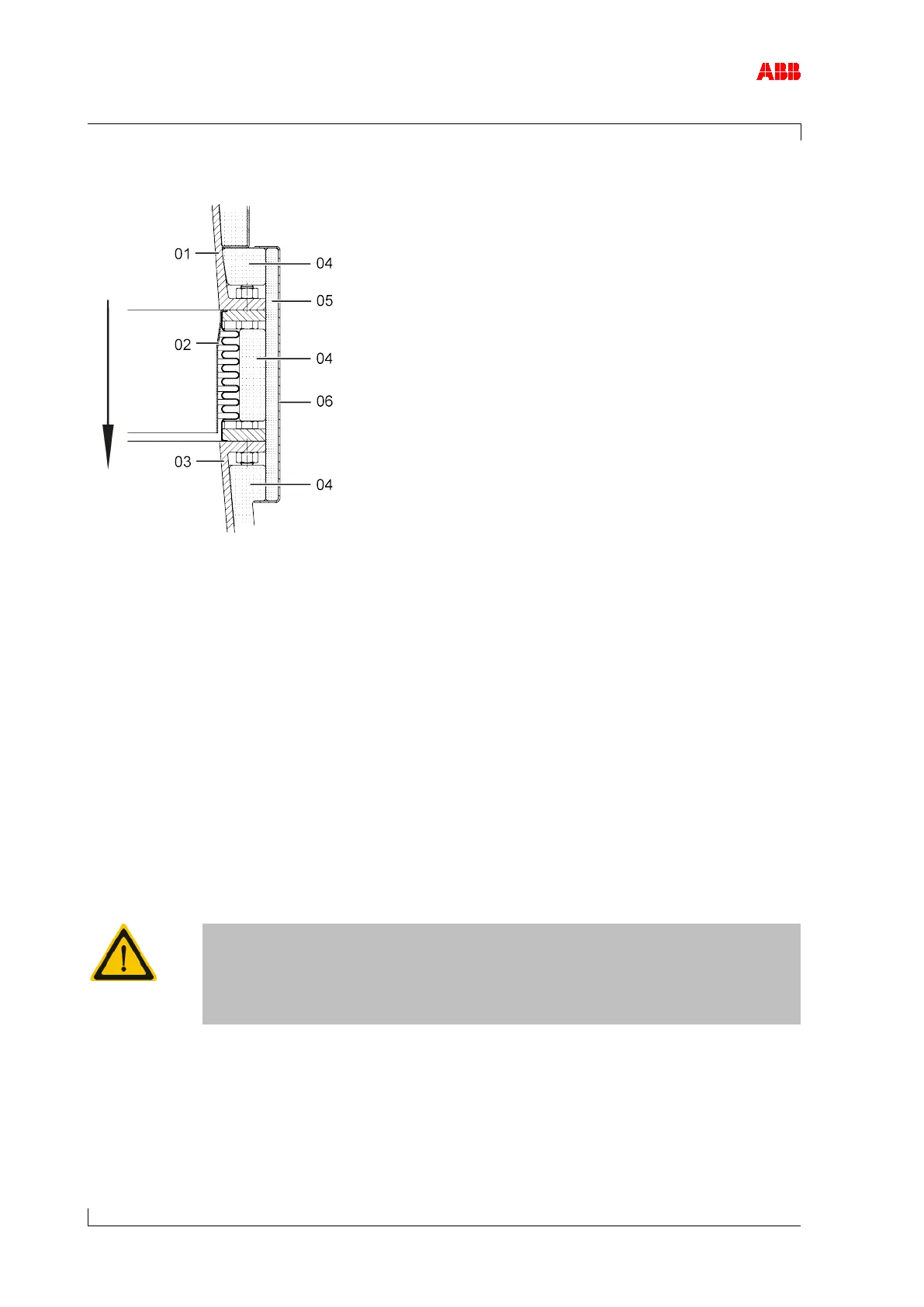

Figure 11: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
Service work includes visual inspections, monitoring, measuring and inspection work as well
as function checks. Service work enables to detect and rectify changes to the turbocharger
and ensures full operability of the turbocharger.
Service work on the turbocharger that are omitted or performed too late can
cause excessive contamination, wear and operating failures.
Carry out the service work at the specified time intervals.
