8.4 Dismantling the filter silencer
If the turbocharger is also fitted with a noise package, observe the chapter on dismantling the
filter silencer with noise package.
 Dismantle the insulation if necessary.

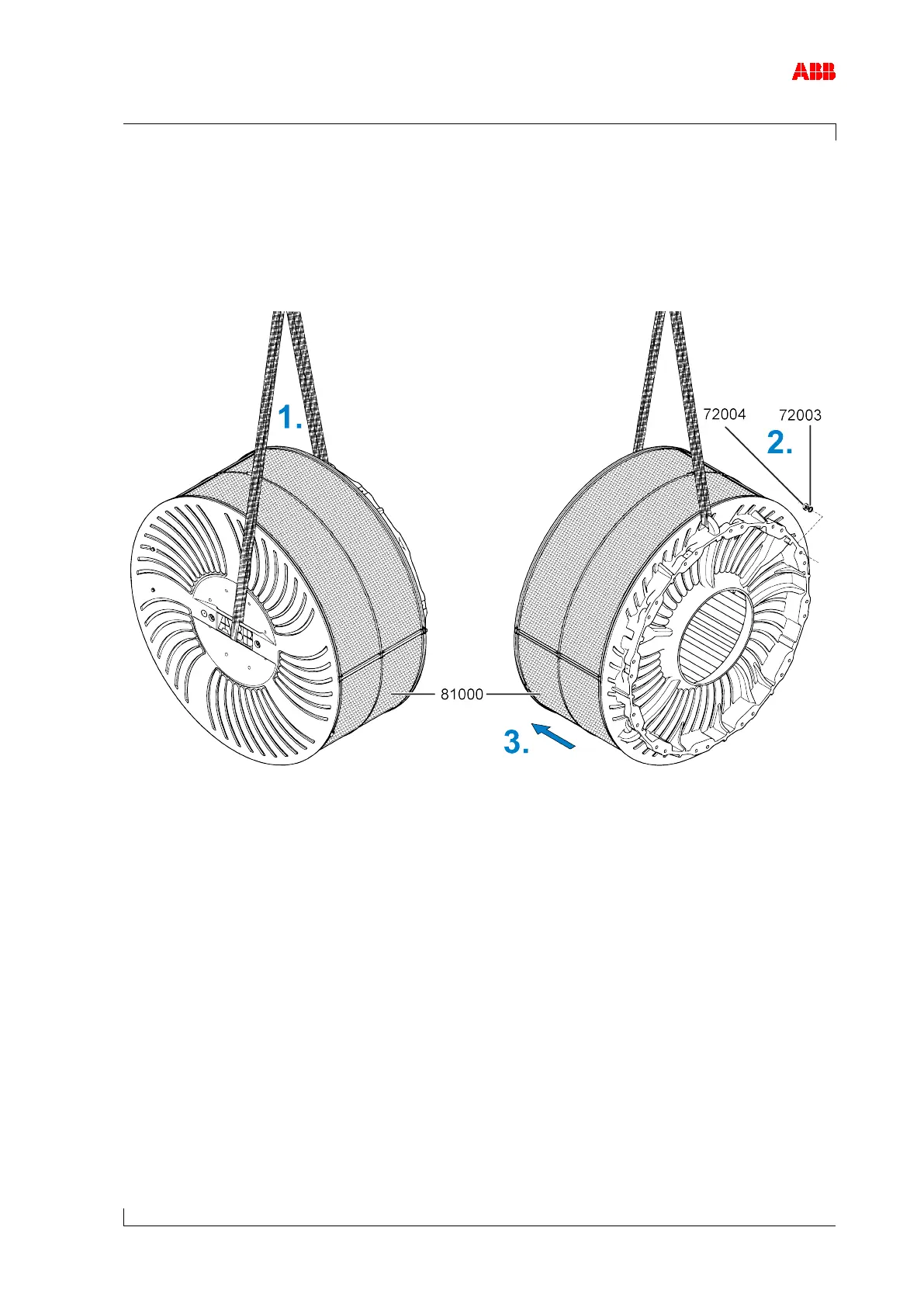

Figure 29: Dismantling the filter silencer
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Loosen nuts (72004) and remove with washers (72003).
3. Remove and put down filter silencer.
