Operation Manual / 4 Product description / A100-L
Page 79 /
© Copyright 2016 ABB. All rights reserved.

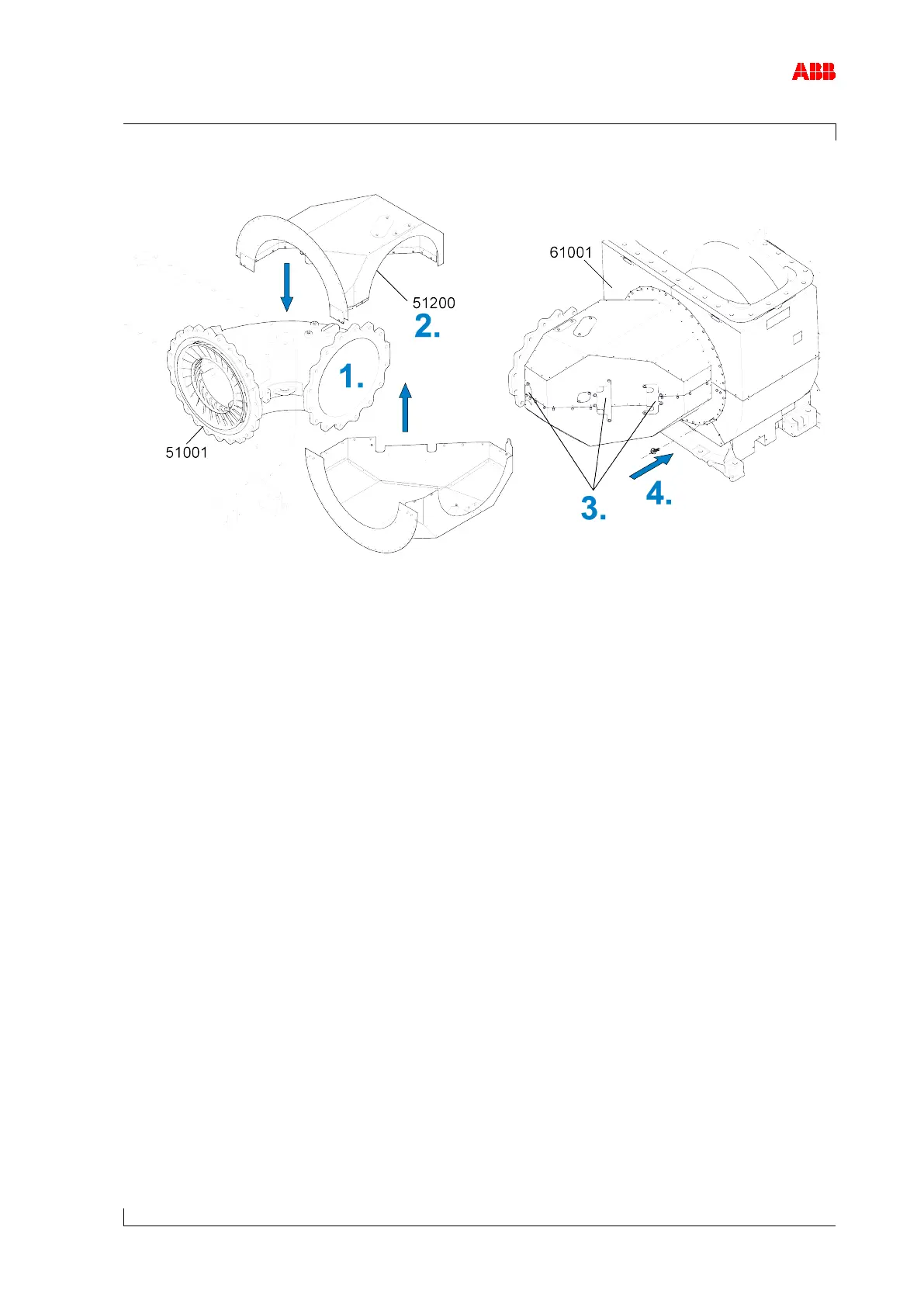

Figure 46: Fit insulation.
1. Fit flange connection between gas inlet casing (51001) and bellows.
2. Fit the insulation jackets (51200) on the gas inlet casing (51001) with the screws.
3. Fit connecting plates of insulation jackets with screws.
4. Fit insulation jackets with screws on gas outlet casing (61001).
