Operation Manual / 4 Product description / A100-L
8
Disassembly and assembly
Page 62 /
113
© Copyright 2016 ABB. All rights reserved.
HZTL4034_EN
Revision H
November 2016

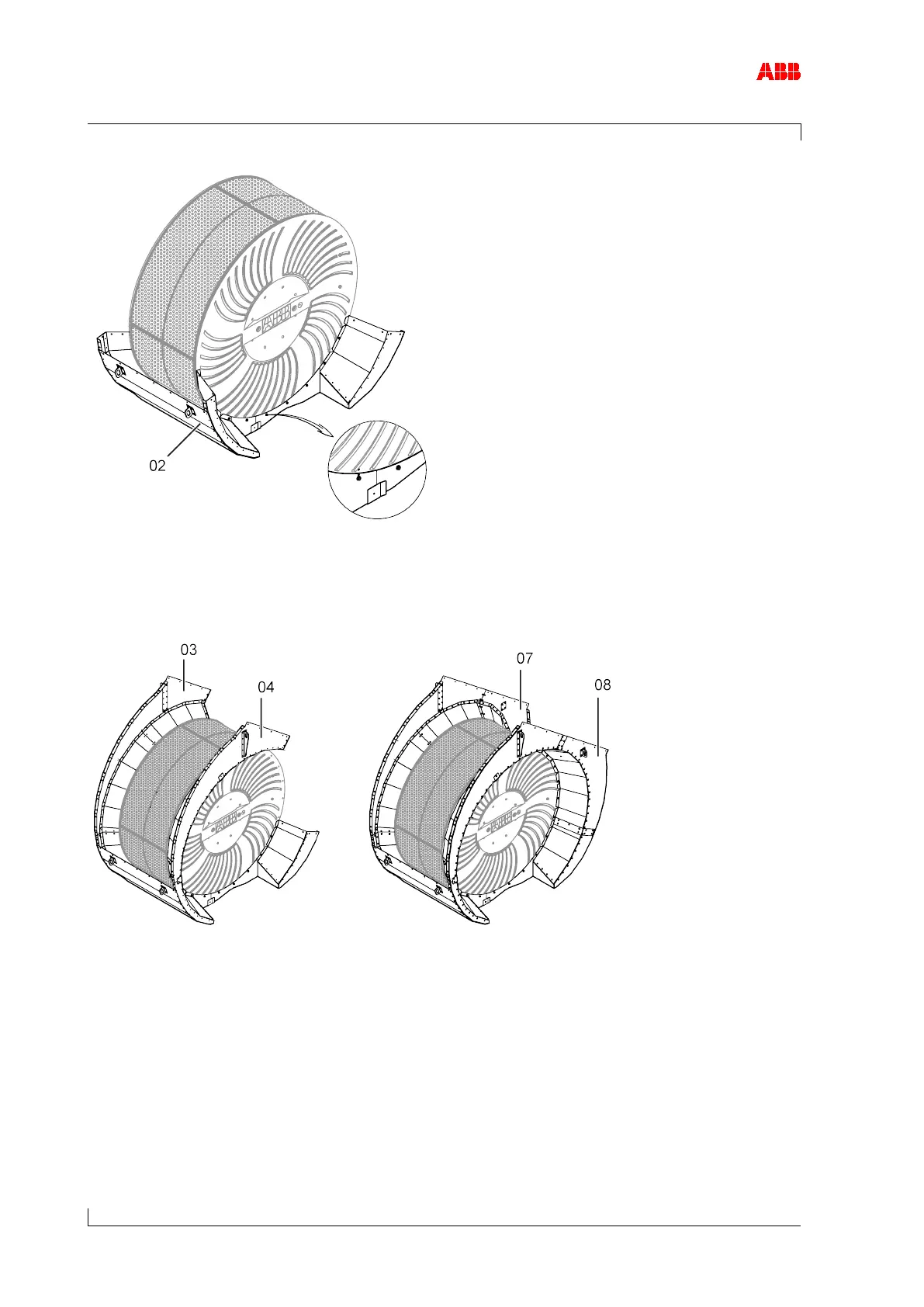

Figure 24: Fitting filter silencer casing 2
 Fit the bottom part (02) with the screws on the filter silencer.
Figure 25: Fitting filter silencer casing 3
 Fit the side parts (03) and (04) with the screws on the filter silencer and on the bottom part.
 Fit the side parts (07) and (08) with the screws on the filter silencer, on the bottom part,
and on the side parts (03, 04).
