Section 2 Transmission Media and Components Thin Cable
9ARD000015-600 33
Table 23 lists the electric current capability based on the network length.
Figure 9 shows the electric current capability on the DeviceNet Power Bus.
Table 23. Electric Current Capability of Thin Cables based on Network Length
Network
Length in
Meters
(feet)
0
10
(33)
20
(66)
30
(98)
40
(131)
50
(164)
60
(197)
70
(230)
80
(262)
90
(295)
100
(328)
Maximum
Electric
Current
(amps)
3.00 3.00 3.00 2.06 1.57 1.26 1.06 0.91 0.80 0.71 0.64

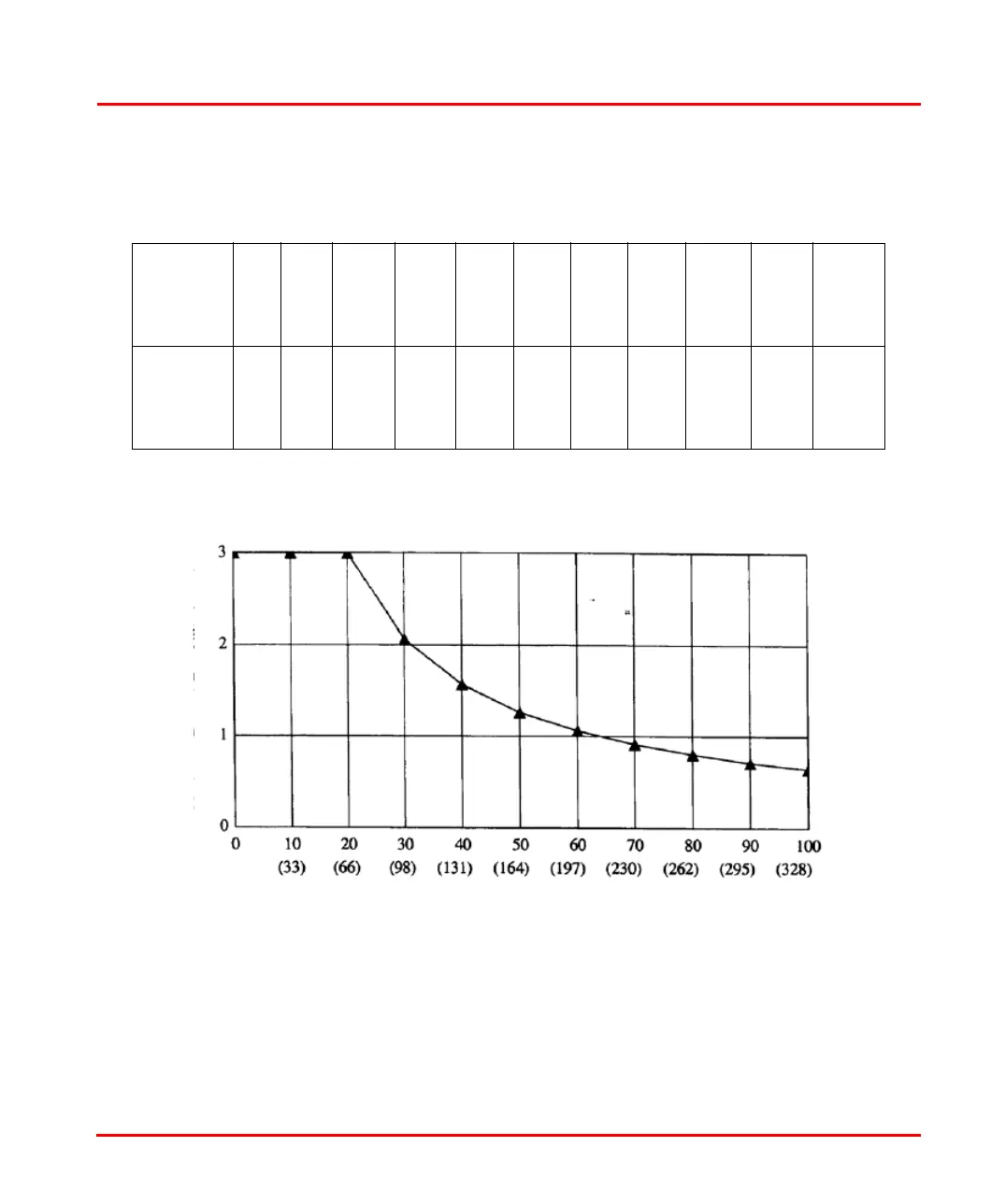

Figure 9. Electric Current Capability on DeviceNet Power Bus
Maximum Current Capability (amps)
Length of Network in meters (feet)
