Section 2 Transmission Media and Components Connectors
9ARD000015-600 47
Figure 14 shows the pinout details of a open connector.
The nodes connecting to the DeviceNet with a connector must have male pins.
This is applicable to the sealed, unsealed connectors, and all nodes that consume
or supply power.
Device removal must be possible without severing or disturbing the network,
regardless of the chosen connector solution.
Do not install wires while the network is active. This can effect network supply
shorting or cause communication disruption.

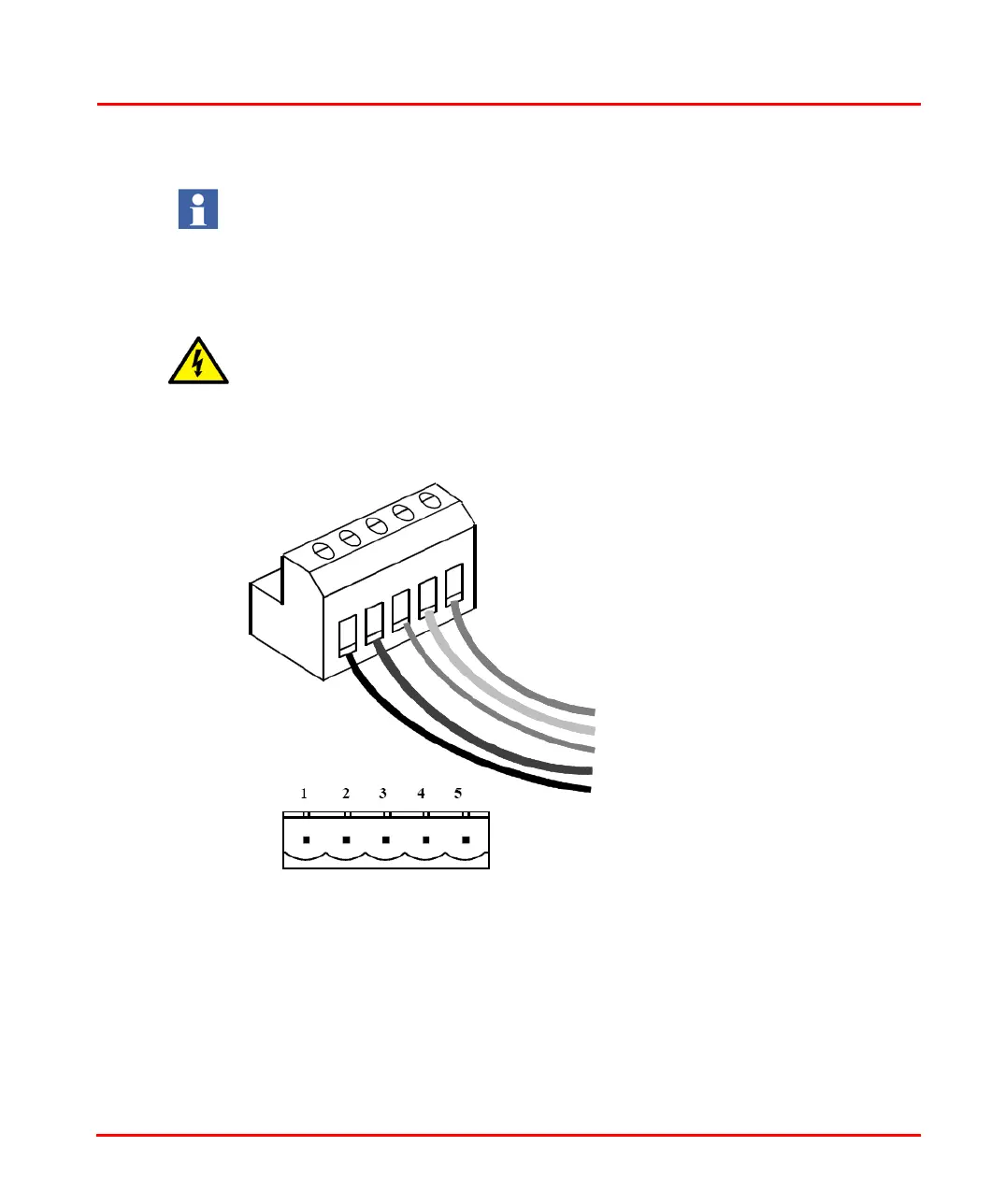

Figure 14. Open Connector Profile
5V+ red
4 CAN H white
3 drain bare
2 CAN L blue
1V- black
Device Connector (Male Contacts)
Network Connector (Female Contacts)
