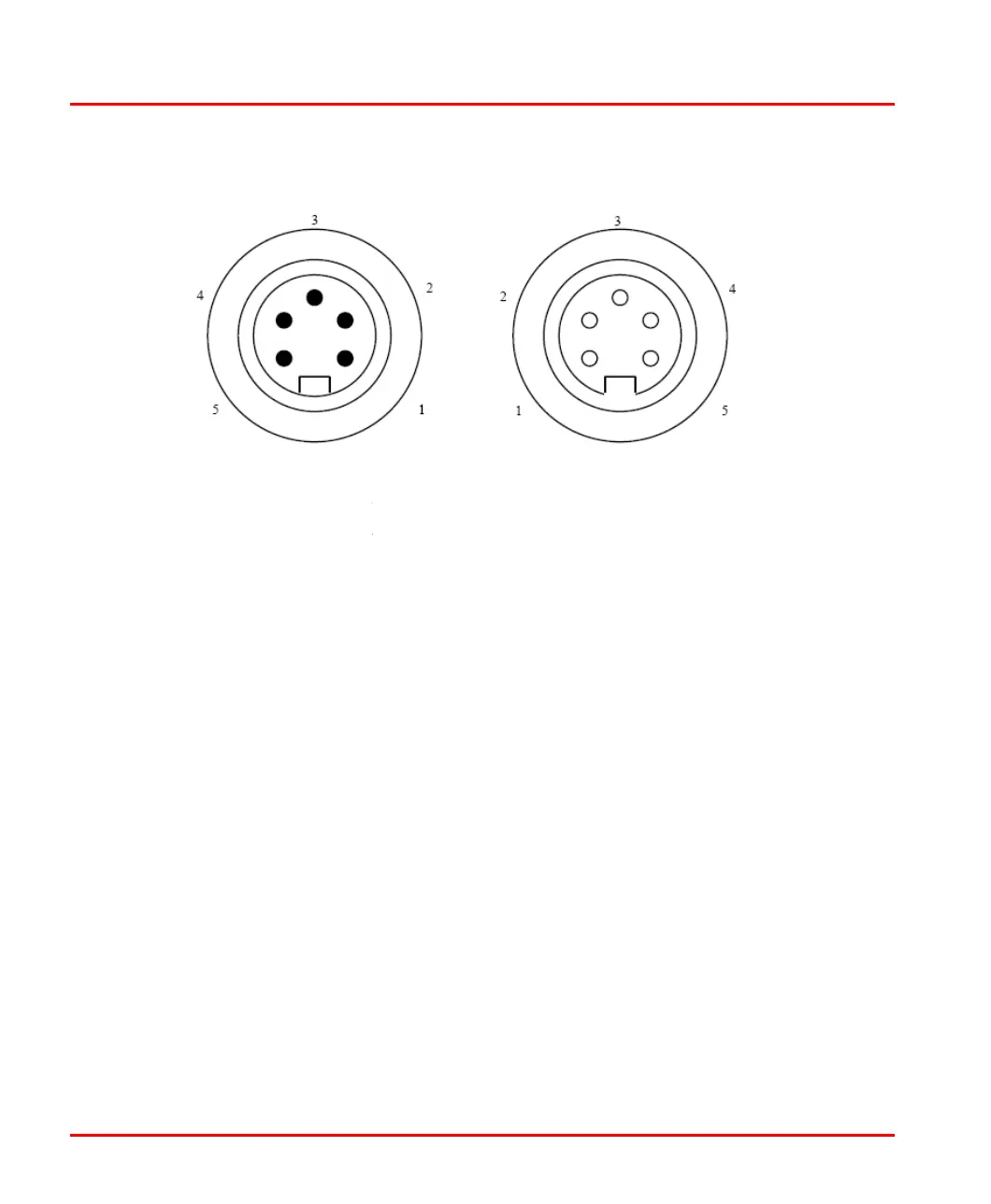

Figure 15 shows the pinout details of a mini connector.
Figure 15. Mini Connector Profile
Male (pins)
Female (sockets)
1 - drain bare
2 - V+ red
3 - V- black
4 - CAN_H white
5 - CAN_L blue
