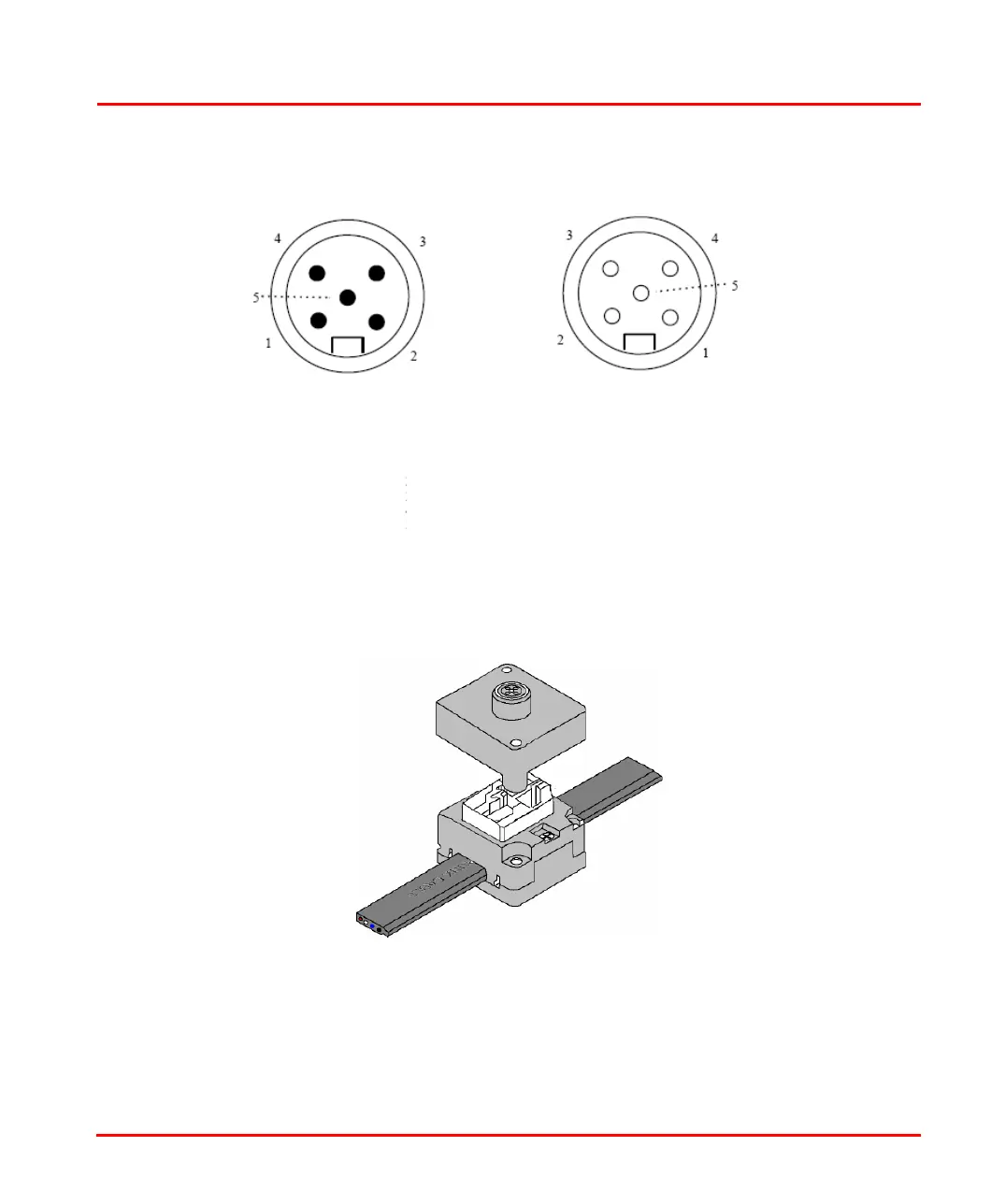

Figure 16 shows the pinout details of a micro connector.
Figure 17 shows the flat trunk connector.
Figure 16. Micro Connector Profile
Figure 17. Flat Trunk Connector
Male (pins)
Female (sockets)
1 - drain bare
2 - V+ red
3 - V- black
4 - CAN_H white
5 - CAN_L blue
