46 E-Bypass Configurations for ACH550 Drives
Technical Data
Dimensions and Weights (Supplement to ACH550-UH User’s Manual)
Mounting Dimensions

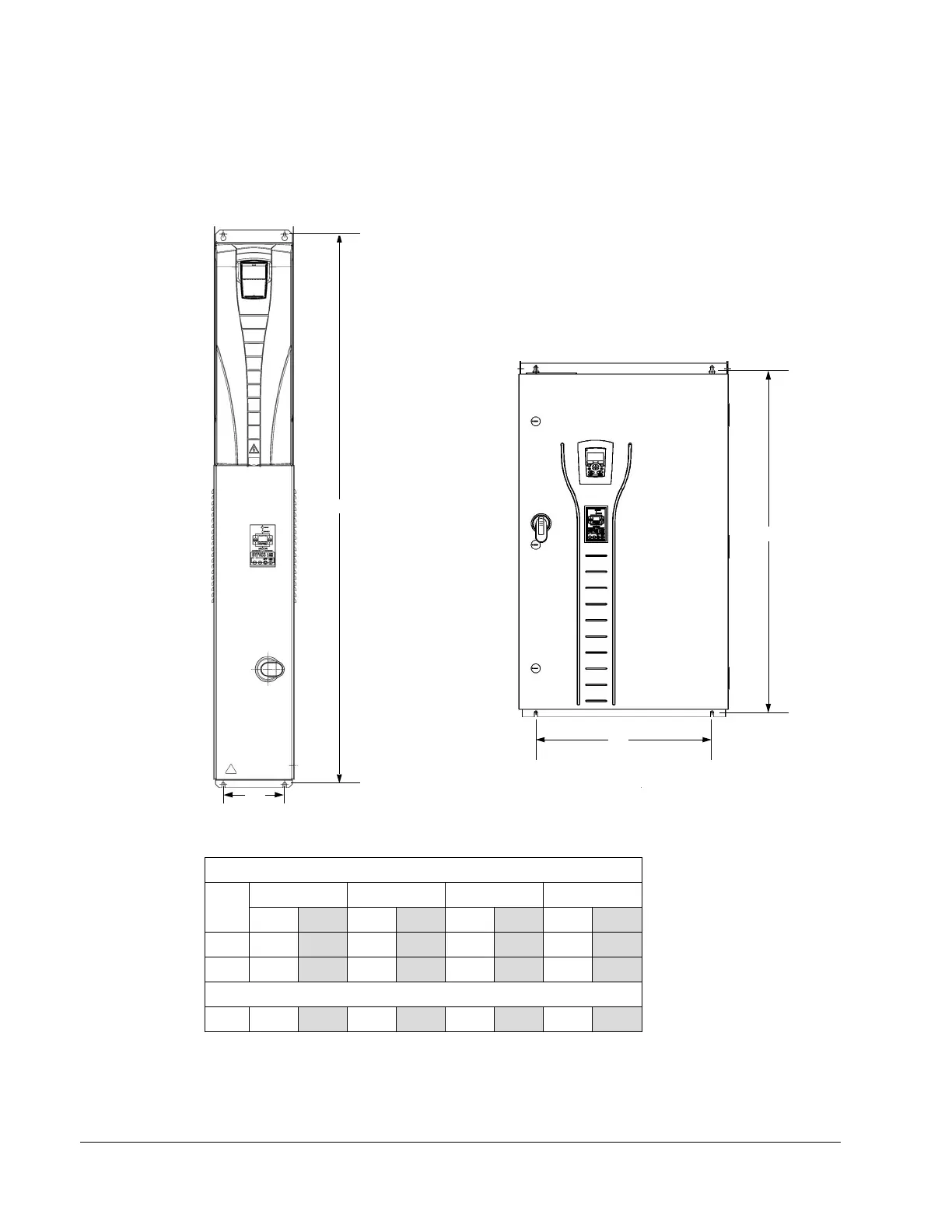

The following diagram and tables provide mounting point dimensions for wall
mounted cabinets.
Vertical Enclosure, R1…R4
IP 21 / UL type 1 – Mounting Dimensions for each Frame Size
Ref.
R1 R2 R3 R4
mm
in mm in mm in mm in
W1* 98
3.9 98 3.9 160 6.3 160 6.3
H1* 1078
42.4 1178 46.4 1332 52.4 1437 56.6
Mounting Hardware
M6
1/4 M6 1/4 M6 1/4 M6 1/4
W1
H1
BP0064
W1
H1
Standard E-Bypass
Vertical E-Bypass
BP0063
