E-Bypass Configurations for ACH550 Drives 49
Technical Data
Standard E-Bypass, UL type 1, R1…R6
Standard E-Bypass, UL type 1, R1…R6

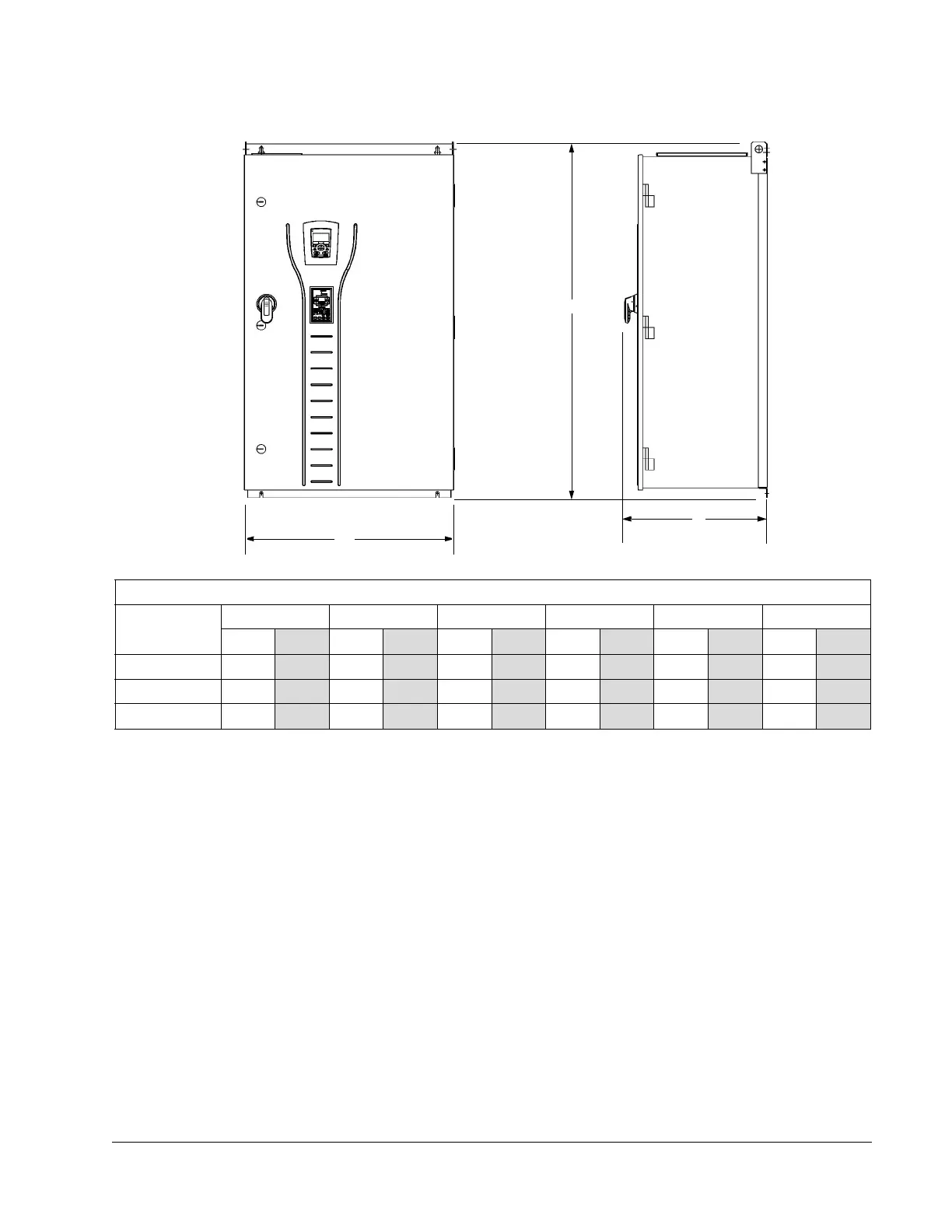

Dimensions
Ref.
R1 R2 R3 R4 R5 R6
mm in. mm in. mm in. mm in. mm in. mm in.
W 443 17.4 443 17.4 521 20.5 521 20.5 713 28.1 713 28.1
H 849 33.4 849 33.4 957 37.7 957 37.7 1212 47.7 1212 47.7
D 319 12.6 319 12.6 365 14.4 365 14.4 485 19.1 485 19.1
W
D
BP0063
H
