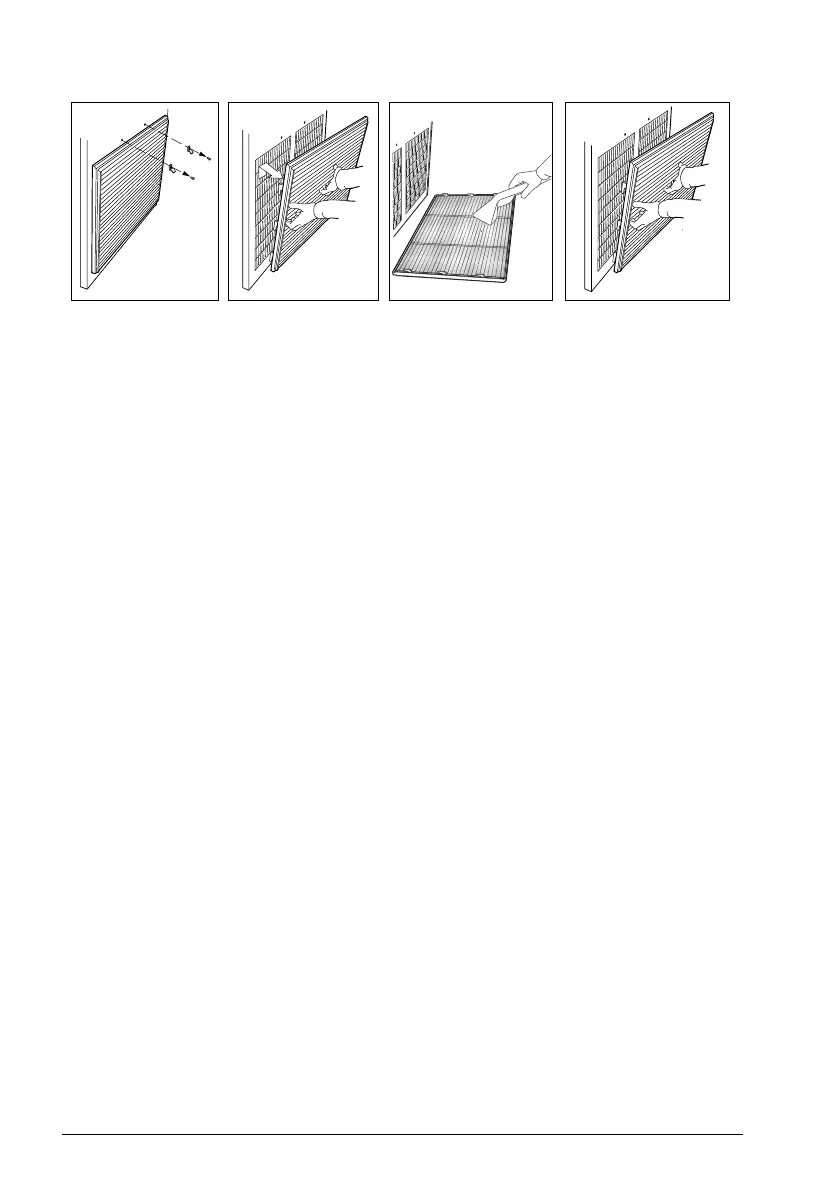

Replacing the air filters (IP54 / UL Type 12)

Check the air filters and replace if necessary.

162 Maintenance
