ABB ACQ580-07 - Unpacking the Transport Package

￭ Unpacking the transport package

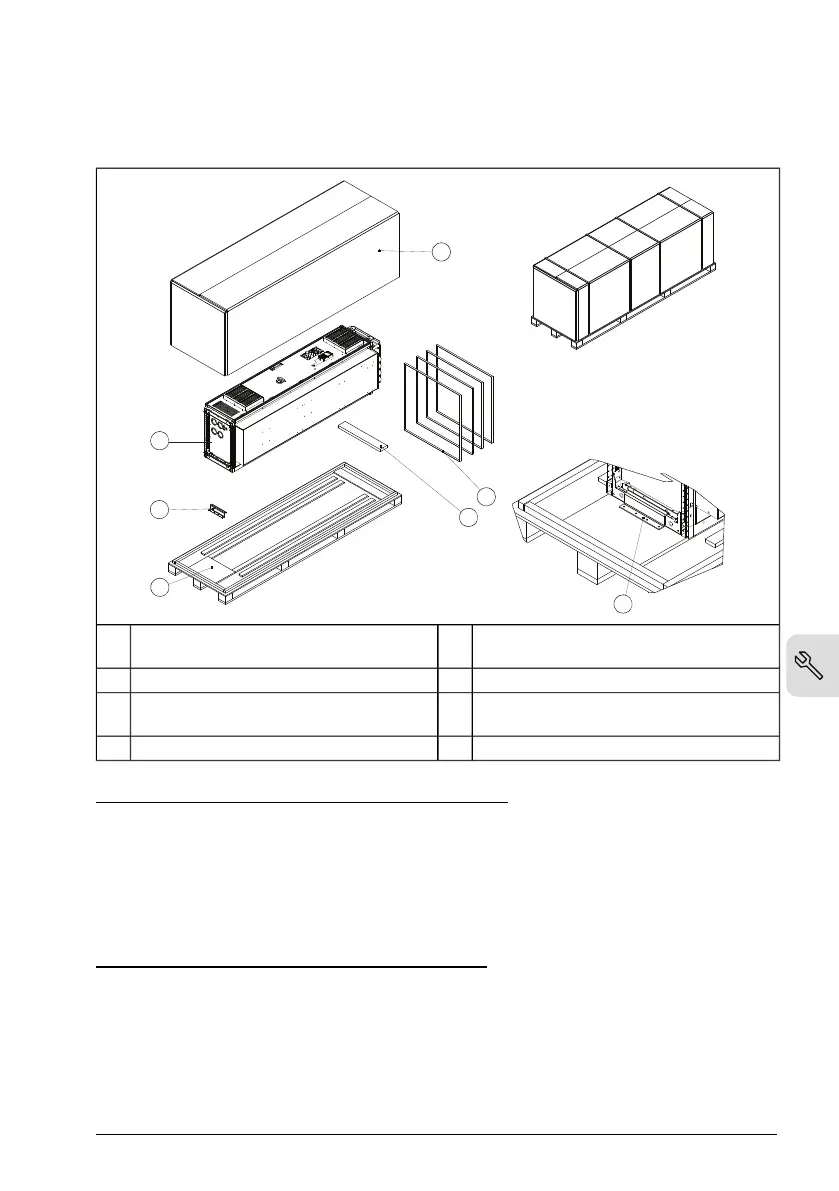

This drawing shows the layout of the horizontal transport package.


4
3
1
5
2
6
1
Timber5Bracket for attaching the drive to the
wooden pallet
1
Drive cabinet6Cardboard packing hood2
Plinth (delivered in a separate package for
frames R6…R9)
7Wooden pallet3
--Straps4
Unpack the horizontal transport package as follows:
1. Cut the straps (4).
2. Remove the hood (2).
3. Undo the screws that attach the bracket (1) to the wooden pallet.
4. Remove the plastic wrapping.
Unpack the vertical transport package as follows:
1. Undo the screws that attach the wooden parts of the transport crate to each other.
2. Remove the wooden parts.
3. Remove the clamps with which the drive cabinet is mounted onto the transport pallet
by undoing the fastening screws.
Mechanical installation 67
