Product overview
The ACQ580-07 is a drive module for controlling AC induction motors, synchronous
reluctance motors and synchronous permanent magnet motors in open loop control.

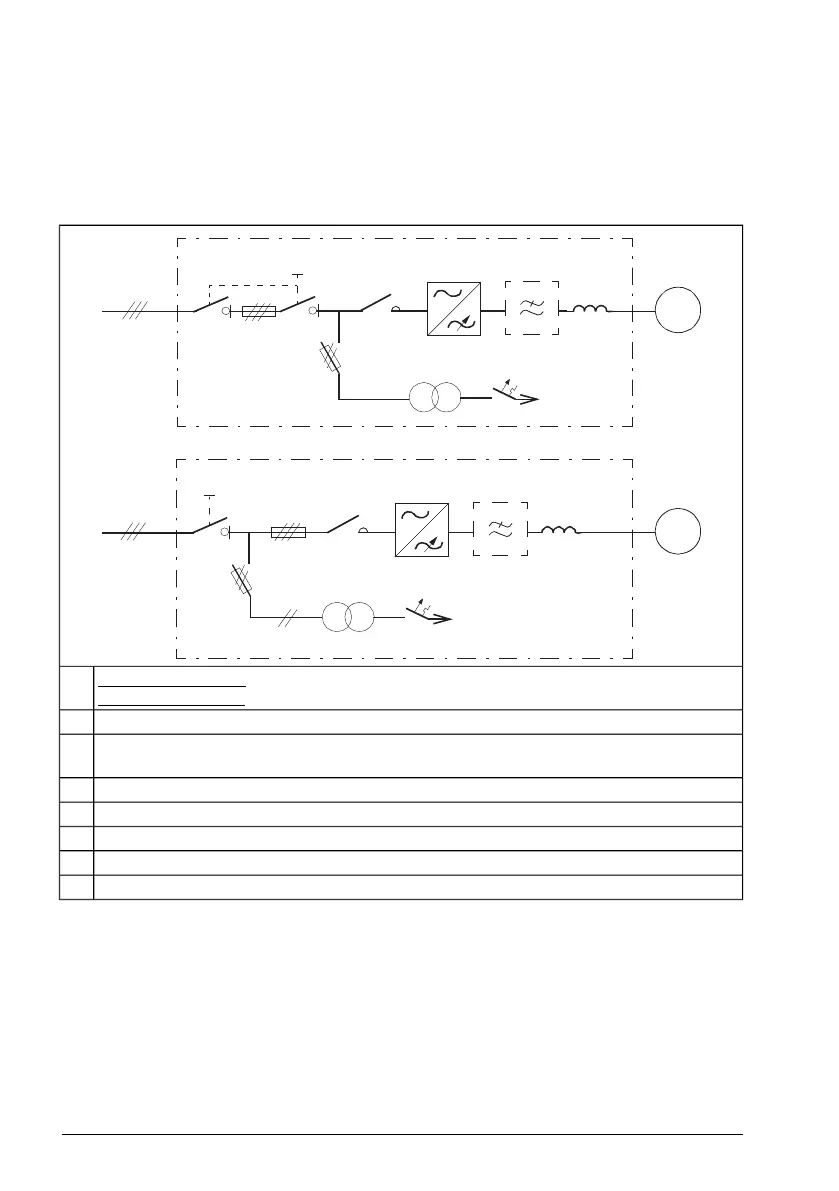

The single-line circuit of the drive is shown below.
54 4
0
a
7
7 5
4 4
7
7
5«5
55
)
)
)
5
0
a
5
)
In frames R6 and R7: Switch fuse or molded case circuit breaker (option +F289).Q1
In frames R8 to R11: Switch-disconnector or molded case circuit breaker (option +F289).
Line contactor (option +F250)Q2
Auxiliary voltage transformer supplying 24 V and 230/115 V control voltage for, eg, cabinet
fan(s), control devices and I/O extension adapter module.
T21
Auxiliary voltage supply fusesF21
Auxiliary circuit protection switchF22
Drive moduleT1
Common mode filter (option +E208 for frames R6 to R9). Standard for frames R10 and R11.R11
du/dt filter (option +E205)R12
36 Operation principle and hardware description
