￭ Wiring of Pt100 relays

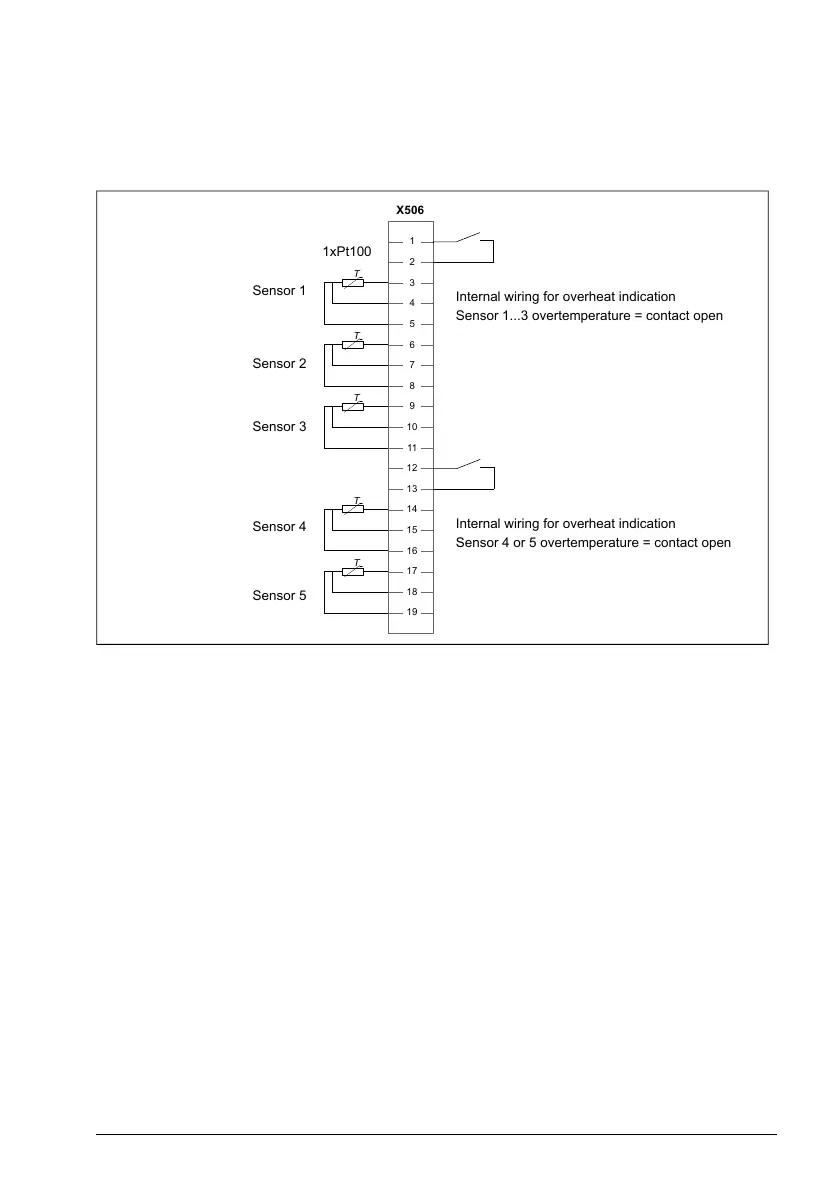

External wiring of sensor modules is shown below. Contact load capacity 250 V AC 10
A. For the actual wiring, see the circuit diagram delivered with the drive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
X506
T
T
T
T
T
Sensor 1
Sensor 2
Sensor 3
Sensor 4
Sensor 5
1xPt100
Internal wiring for overheat indication
Sensor 1...3 overtemperature = contact open
Internal wiring for overheat indication
Sensor 4 or 5 overtemperature = contact open
Update notice 3
