ABB ACS140 - Page 84

75
4009 ACT1 MINIMUM
Minimum value for actual value 1 (
ACT1). The setting range is -1000 to +1000 %.
Refer to Figure 16 and to Group 13 parameters for analogue input minimum and
maximum settings.
4010 ACT1 MAXIMUM
Maximum value for actual value 1 (
ACT1). The setting range is -1000 to +1000
%. Refer to Figure 16 and to Group 13 parameters for analogue input minimum
and maximum settings.
4011 ACT2 MINIMUM
Minimum value for actual value 2 (
ACT2). Refer to parameter 4009.
4012 ACT2 MAXIMUM
Maximum value for actual value 2 (
ACT2). Refer to parameter 4010.

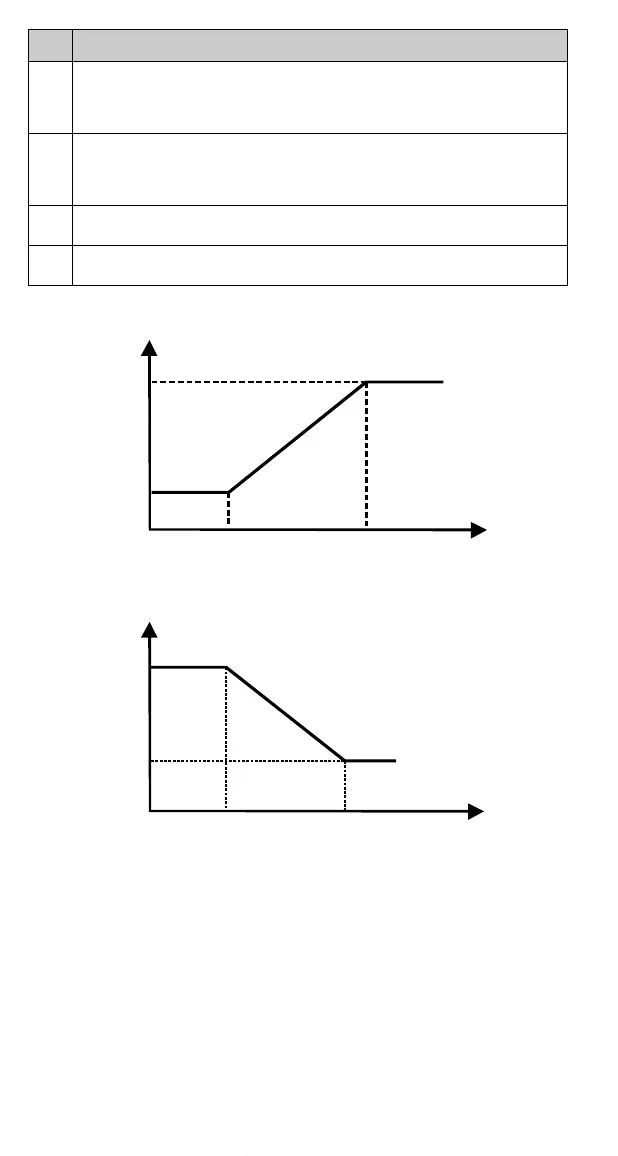

Figure 16 Actual value scaling. The range of the analogue input signal is set
by parameters 1301 and 1302 or parameters 1304 and 1305, depending on
the analogue input used.
Code Description
ACT1 (%)
Analogue
ACT1
ACT1
AI min
AI max
input signal
MINIMUM
MAXIMUM
ACT1 (%)
Analogue
ACT1
ACT1
AI min AI max
input signal
MAXIMUM
MINIMUM
