ABB ACS880-104

￭ Additional notes

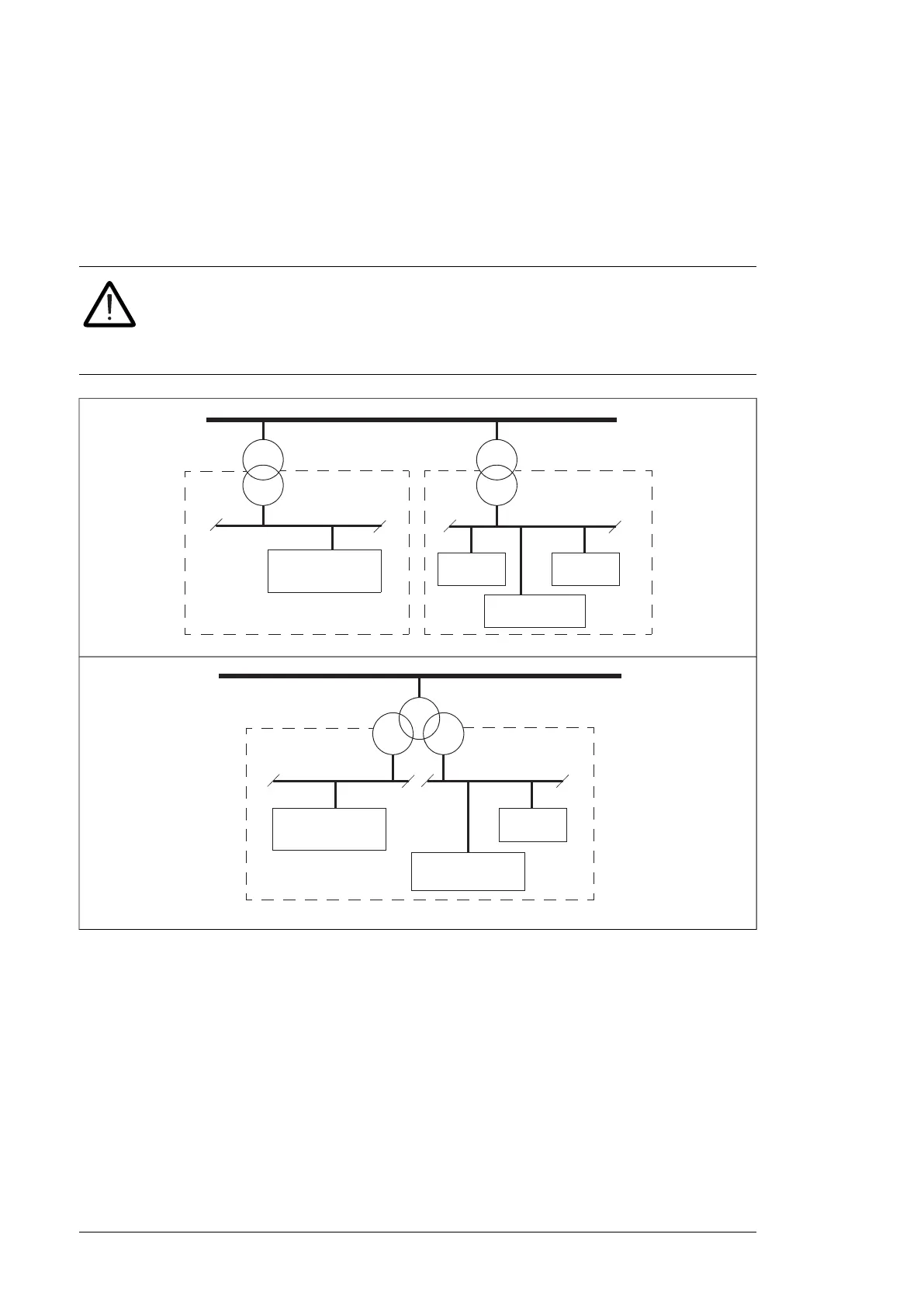

A drive larger than 500 kVA with an IGBT supply unit or a regenerative rectifier unit
Use a two-winding transformer dedicated to drives and motors. Alternatively, use a
three-winding transformer, and connect only drives and motors to the same secondary
winding.
WARNING!
Do not connect capacitive load (for example: lighting, PCs, PLCs, small power
factor compensation capacitors, etc.), to the same transformer secondary winding
with drive. It can cause current resonances which can damage the equipment.
Low voltage
Other drives
Low voltage
Other load than
drives and motors
Supply transformer
Medium voltage network
DRIVE
Neighbouring network
Motors
Low voltage
Other drives and
motors
DRIVE
Other load than
drives and motors
Supply transformer
Medium voltage network
16 Electrical planning guidelines
