Operation
25

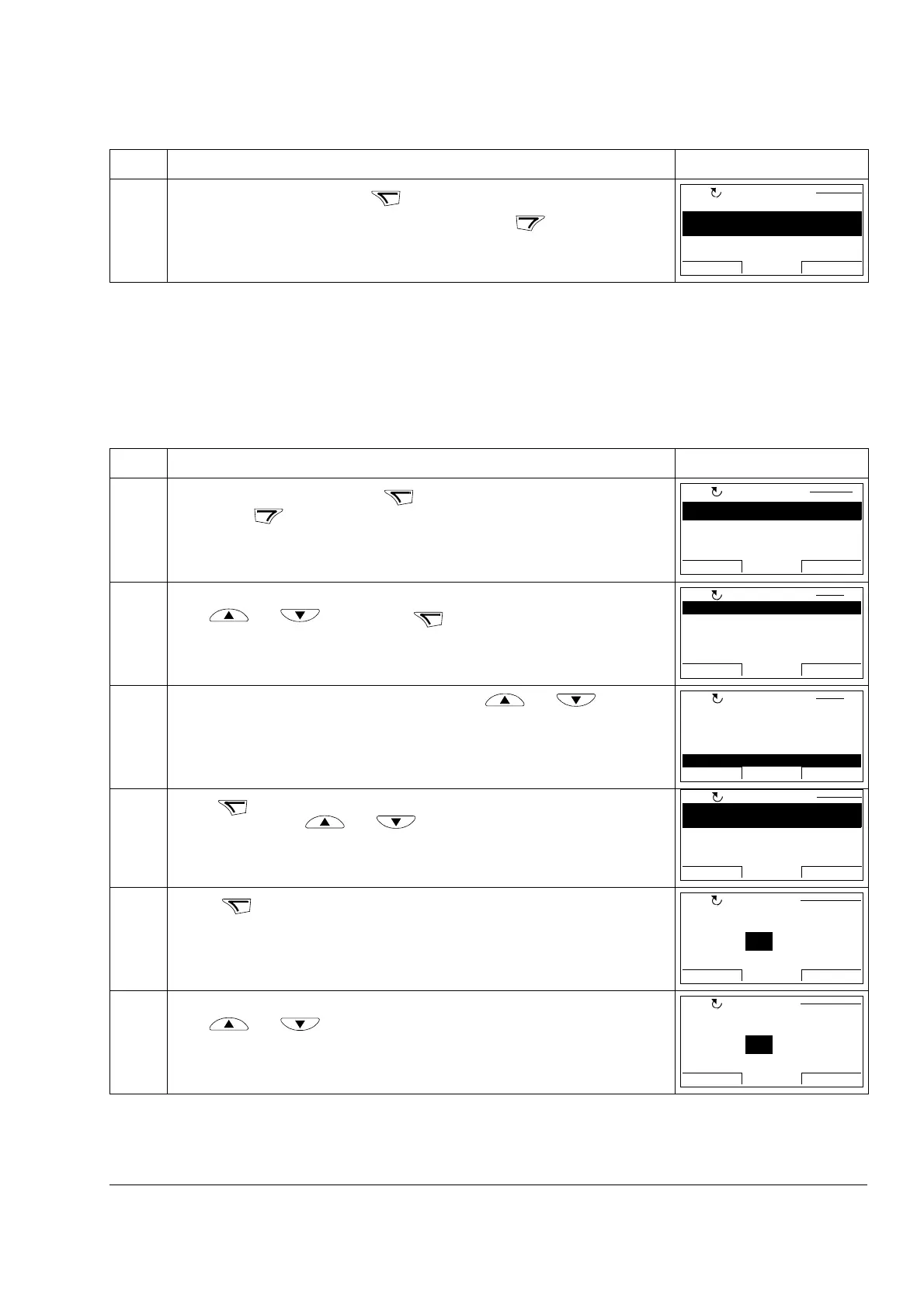

How to change the value of value pointer parameters
In addition to the parameters shown above, there are two kinds of pointer
parameters; value pointer parameters and bit pointer parameters. The value pointer
parameter points to the value of another parameter/signal. The source parameter is
given in format P.xx.yy, where xx = Parameter group; yy = parameter index.
For more information, see appropriate Firmware Manual.
6. • To save the new value, press .
• To cancel the new value and keep the original, press .
Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go to the Parameters option by selecting PARAMETERS on the menu with
keys and , and pressing .
3. Select the appropriate parameter group with keys and . Here the
value pointer parameter 15.01 AO1 PTR is used as an example.
4. Press to select the appropriate parameter group. Select the appropriate
parameter with keys and , current value of each parameter is
shown below it.
5. Press . Current value of the value pointer parameter is shown, as well as
the parameter group it points to.
6. Specify a new parameter group for the value pointer parameter to point to with
keys and . The parameter group changes respectively.
Step Action Display
9901 LANGUAGE
9904 MOTOR TYPE
PMSM
9906 MOT NOM CURRENT
9907 MOT NOM VOLTAGE
PARAMETERS
EXIT
EDIT
00:00
LOC
PARAMETERS
FAULT LOGGER
TIME & DATE
EXIT ENTER00:00
MAIN MENU 1
LOC
01 ACTUAL VALUES
02 I/O VALUES
03 CONTROL VALUES
04 POS CTRL VALUES
06 DRIVE STATUS
EXIT
SEL00:00
PAR GROUPS 01
LOC
10 START/STOP
11 START/STOP MODE
12 DIGITAL IO
13 ANALOGUE INPUTS
15 ANALOGUE OUTPUTS
EXIT
SEL00:00
PAR GROUPS 15
LOC
1501 AO1 PTR
P.01.05
1502 AO1 FILT TIME
1503 AO1 MAX
1504 AO1 MIN
PARAMETERS
EXIT
EDIT
00:00
LOC
1501 AO1 PTR
PAR EDIT
P.01.05
CANCEL NEXT
00:00
01 ACTUAL VALUES
LOC
1501 Ao1 PTR
PAR EDIT
P.02.05
CANCEL NEXT
00:00
02 I/O VALUES
LOC
