Reference Edit
In the Reference Edit option, you can:
• accurately control the local reference value,
• start, stop, change the direction and switch between local and remote control.
Editing is allowed only in the LOC state, the option always edits the local reference
value.

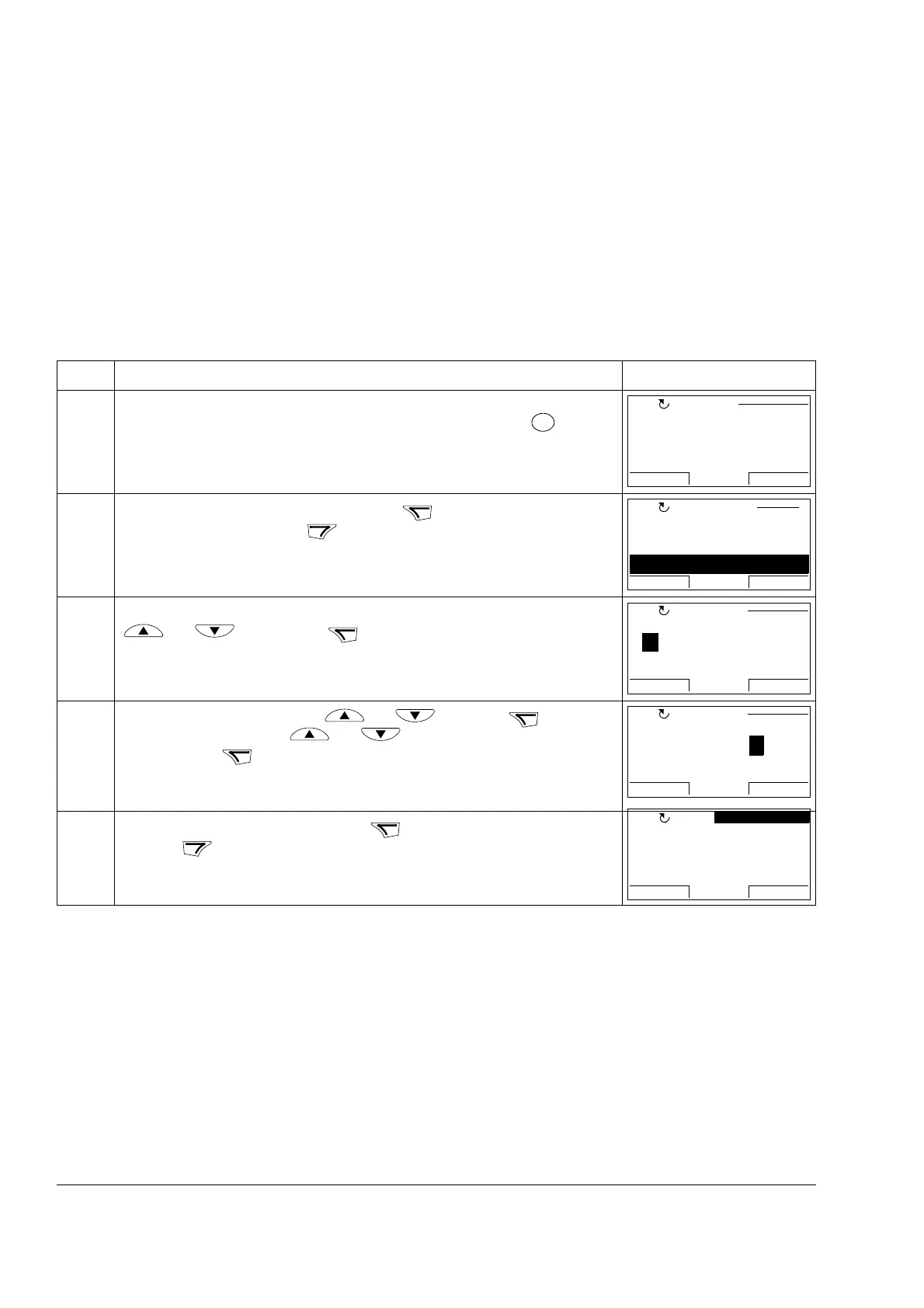

How to edit reference value
Step Action Display
1. If the panel is in the remote control mode (REM shown on the status line),
switch to local control (LOC shown on the status line) by pressing .
Reference editing is not possible in remote control mode. The display shows a
message about that, if you try to enter REF EDIT in the remote control mode.
2. Otherwise, go to the Main menu by pressing if you are in the Output
mode, otherwise by pressing repeatedly until you get to the Main menu.
3. Go to the Reference Edit option by selecting REF EDIT on the menu with keys
and , and pressing .
4. Select the correct sign with keys and , and press . Select the
correct numbers with keys and , and after each number is
selected, press . If you do not select a number for a couple of seconds, the
number you are editing moves on to the next one on the right.
5. After the last number is selected, press . Go to the Output mode by
pressing . The selected reference value is shown in the status line.
LOC
REM
Reference editing
enabled only in
local control mode
MESSAGE
REM
00:00
MENU
EXIT
TIME & DATE
PAR BACKUP
REF EDIT
EXIT ENTER
00:00
MAIN MENU 5
LOC
ENTER
0000.00 rpm
+
REF EDIT
CANCEL
NEXT00:00
LOC
NEXT
NEXT
1250.00 rpm
-
REF EDIT
CANCEL
SAVE00:00
LOC
SAVE
EXIT
-1250.00rpm
50 A
10 Hz
7 %10.
0.
49.
LOC
DIR
MENU00:00
