AO2000-LS25 LASER ANALYZERS | OI/AO2000-LS25-EN REV. D 43
AO2000 with two or three laser analyzers
1
Customer network
2
Ethernet switch
3
Network cable (standard)

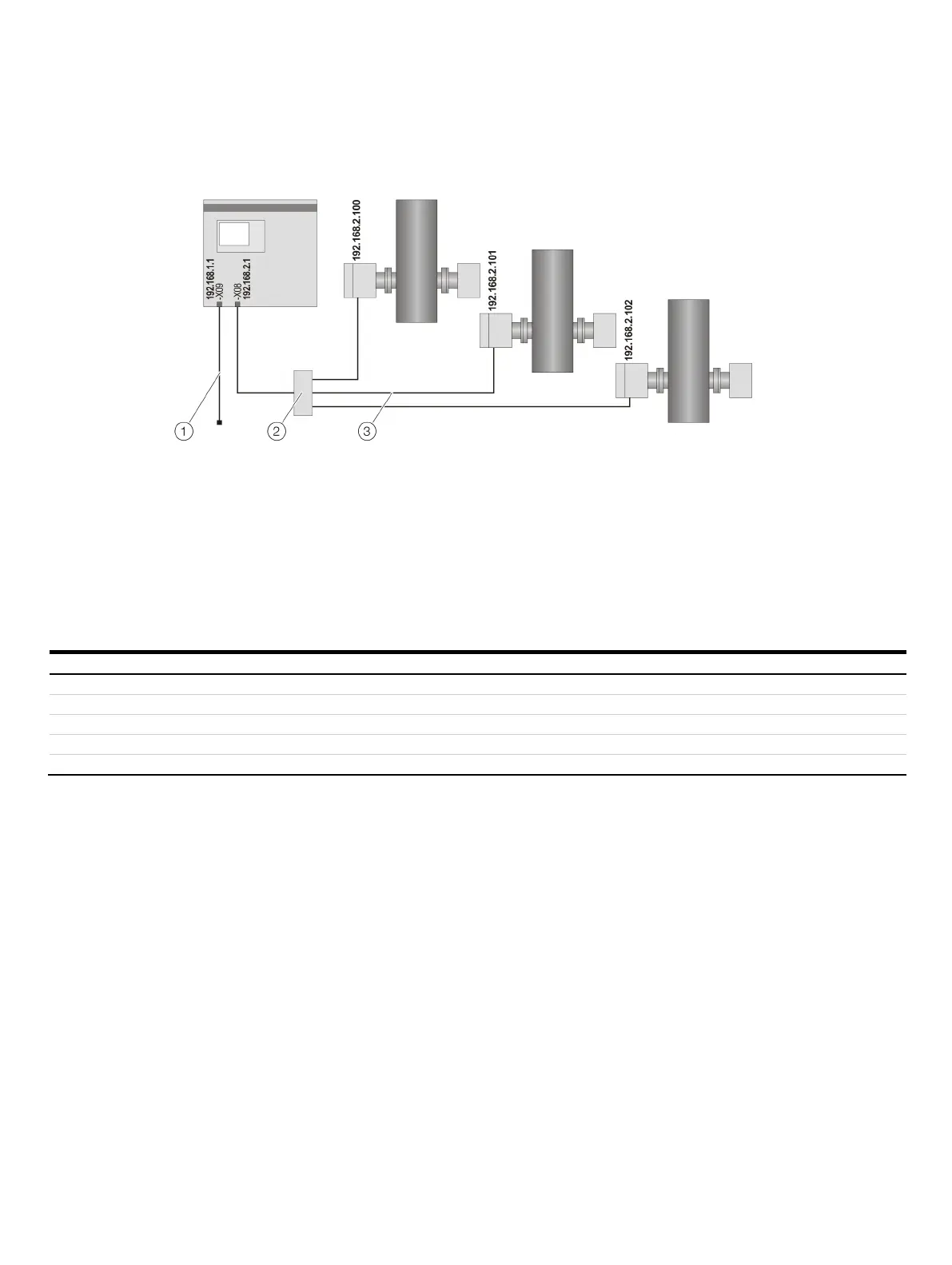

Figure 25: Ethernet connection – AO2000 with two or three laser analyzers
The laser analyzers are connected to a switch which is connected to the 2nd Ethernet interface -X08 via its uplink port.
For the connection between the laser analyzer and the switch a standard network cable is necessary.
Each laser analyzer must have a unique IP address within the same network group as the Ethernet interface.
The 1st Ethernet interface -X09 is used e.g. to connect AO2000 to the customer network.
Example of set IP addresses:
AO2000
1. Ethernet interface -X09:
192.168.1.1
2.
Ethernet interface -X08:
192.168.2.1
LS25
1. Analyzer:
192.168.2.100
2. Analyzer:
192.168.2.101
3. Analyzer:
192.168.2.102
