Electronic Commercial Water Meter
AquaMaster™ 3 Electrical Installation
14 IM/AM Issue 13

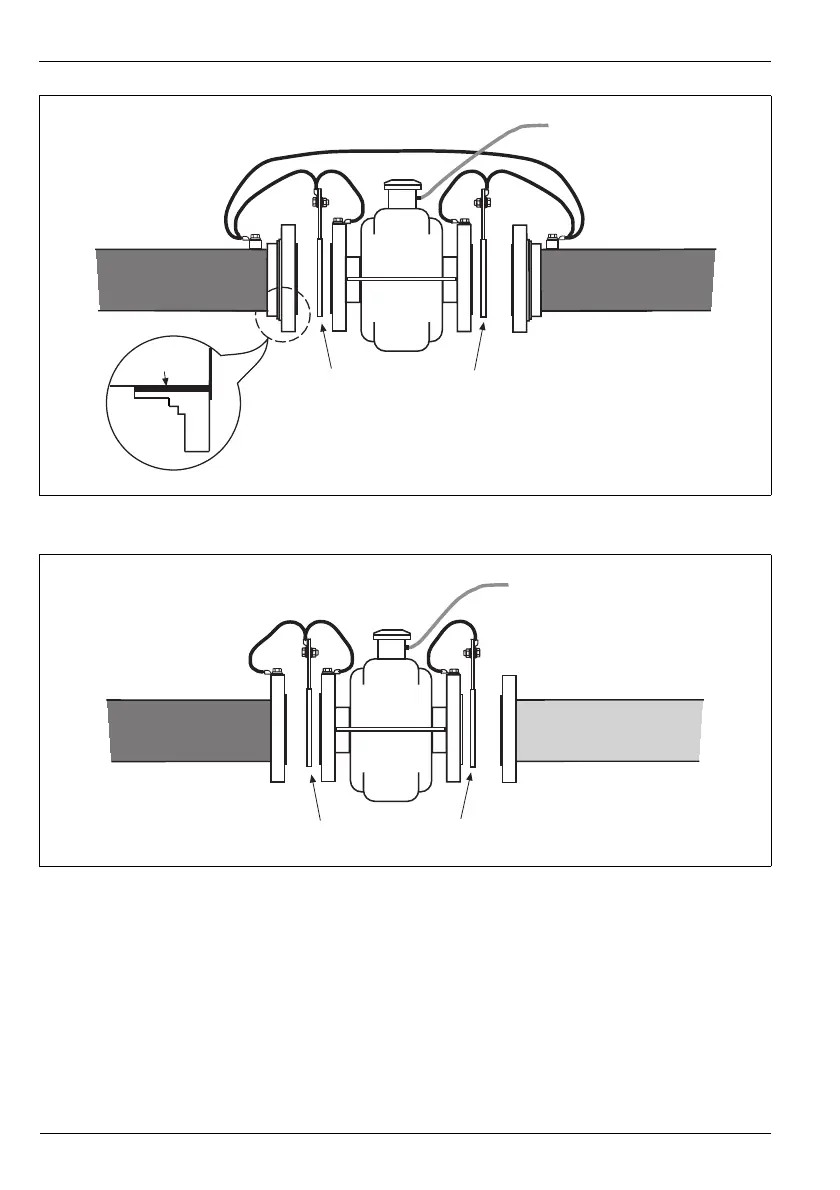

Fig. 3.2 Metal Pipe With Flange Adaptor
Fig. 3.3 Flanged Metal Pipe to Plastic Pipe
Fluid Contact Rings
See Figs. 3.6 and 3.7
Insulation
Fluid Contact Rings
See Figs. 3.6 and 3.7
