Electronic Commercial Water Meter
AquaMaster™ 5 Specification
IM/AM Issue 13 49

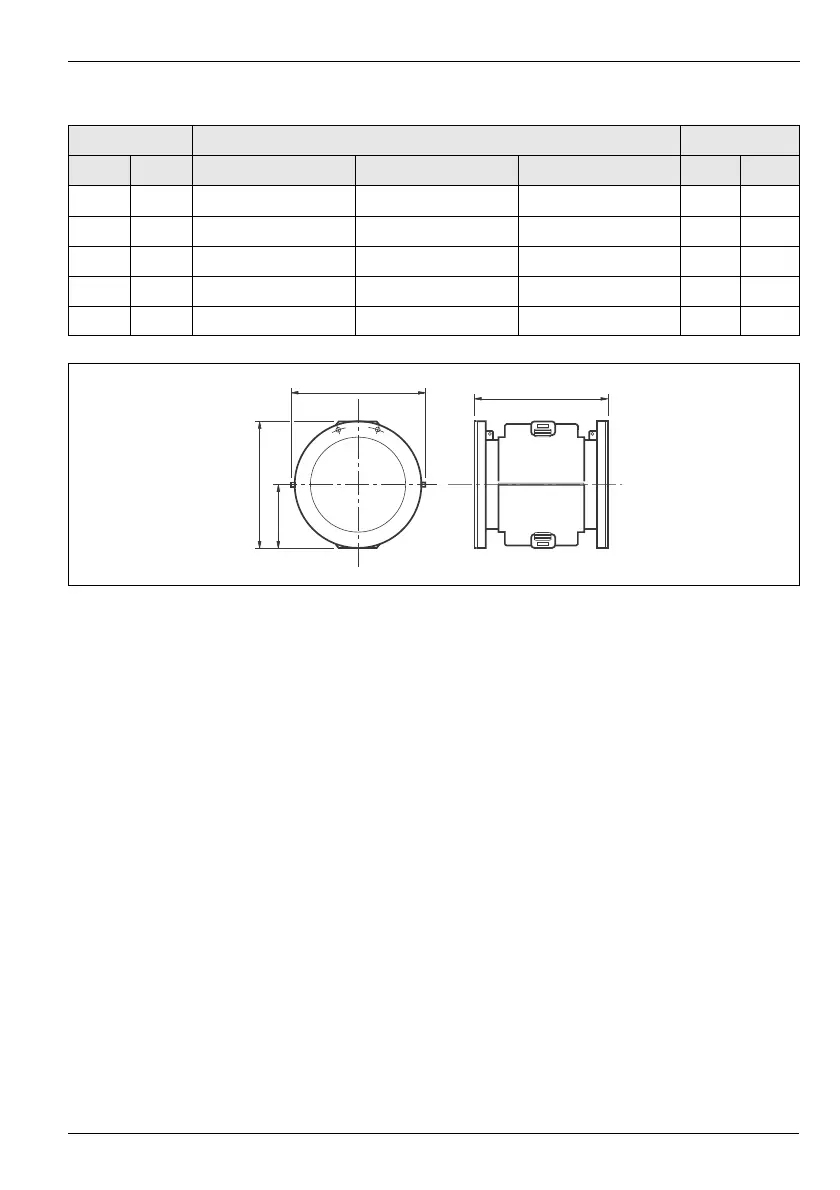

350 to 600mm (14 to 24 in.) – Flanged
SS/AMAS-S Issue 6
Meter Size Dimensions mm (in) Approx. Weight
mm in. A B C kg lb
350 14 513 (20.2) 520 (20.5) 550 (21.7) 100 220
400 16 570 (22.4) 576 (22.7) 600 (23.6) 115 253
450 18 632 (24.9) 627 (24.7) 698 (27.5) 160 352
500 20 686 (27.0) 679 (26.7) 768 (30.2) 217 455
600 24 772 (30.4) 770 (30.3) 918 (36.1) 315 693
=50%A
C
A
B
