Electronic Commercial Water Meter
AquaMaster™ 2 Mechanical Installation
IM/AM Issue 13 7

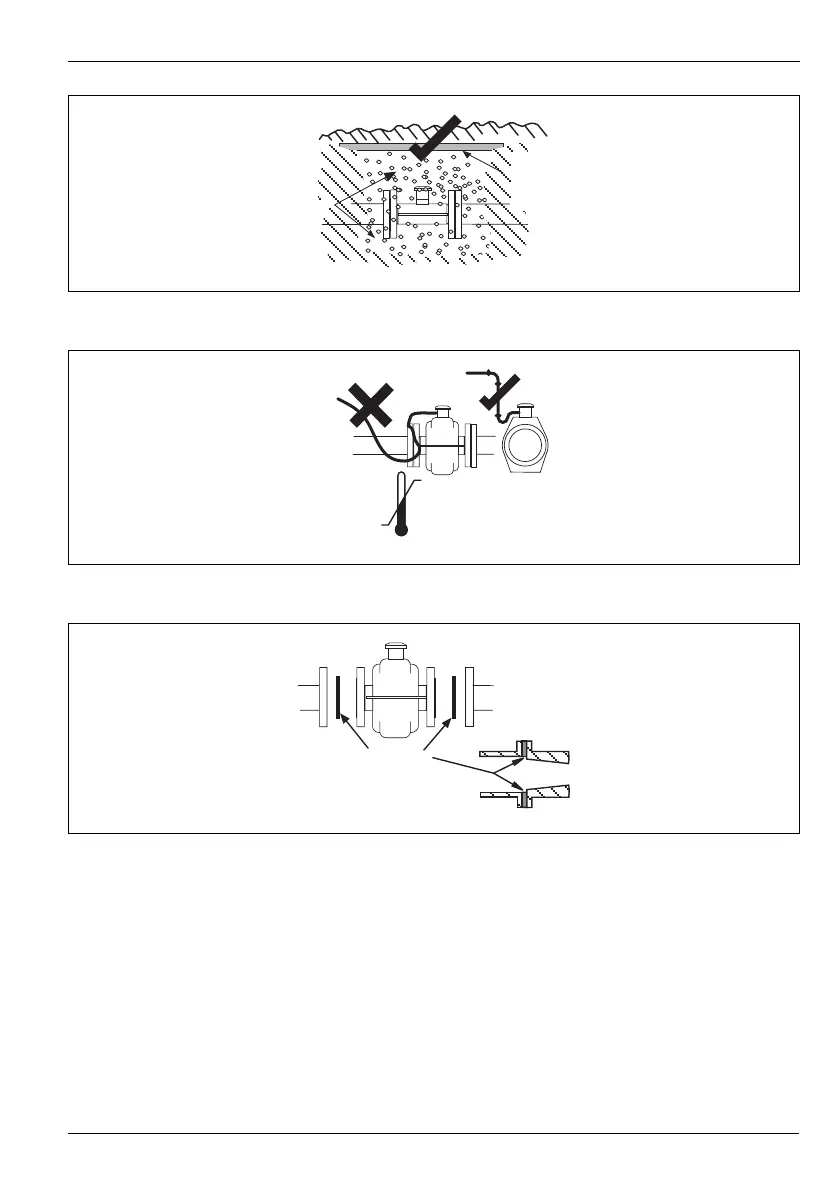

Fig. 2.13 Underground
Fig. 2.14 Cable Routing
Fig. 2.15 Gasket Fitting
Backfill
(Recommended)
Adequate
Protection
Plate
80°C (176°F)
Maximum
10°C (14°F)
Minimum
Fit gaskets
Gasket same
size as pipe
