/2 DIN 3 Communication Overview
6 IM/CM/C–EN
3.1.2 RS 485 MODBUS
Using RS 485 MODBUS, values and status can be communicated to and from the controller in real-time via an RS 485
connection.

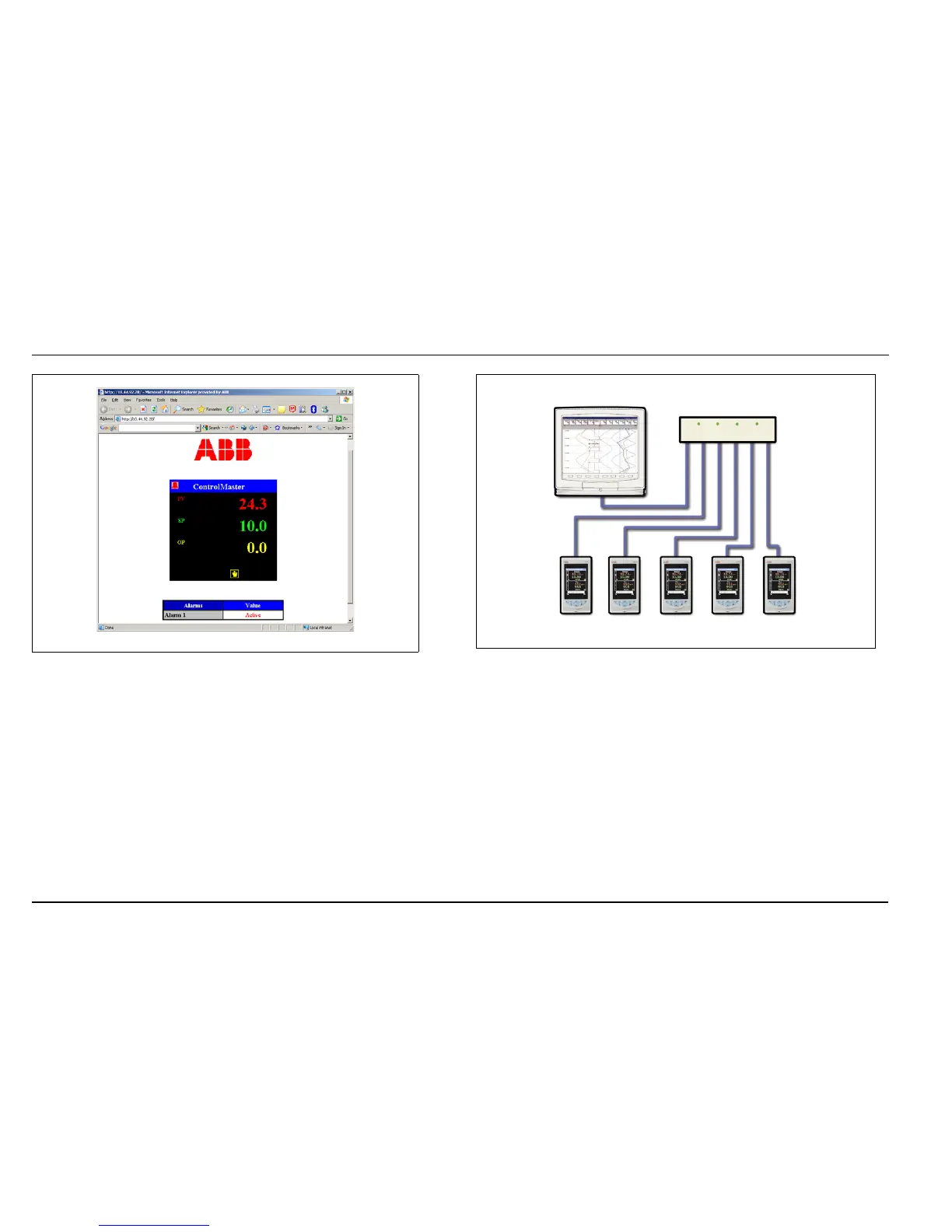

Fig. 3.1 Webserver
Fig. 3.2 ControlMasters connected to a ScreenMaster
