ABB D1 User Manual

8
EN
Press 1. MENU.
The first menu which may be selected appears (P Standard) »
Scroll the various menus using keys 2.
.
Confirm desired menu with 3. OK.

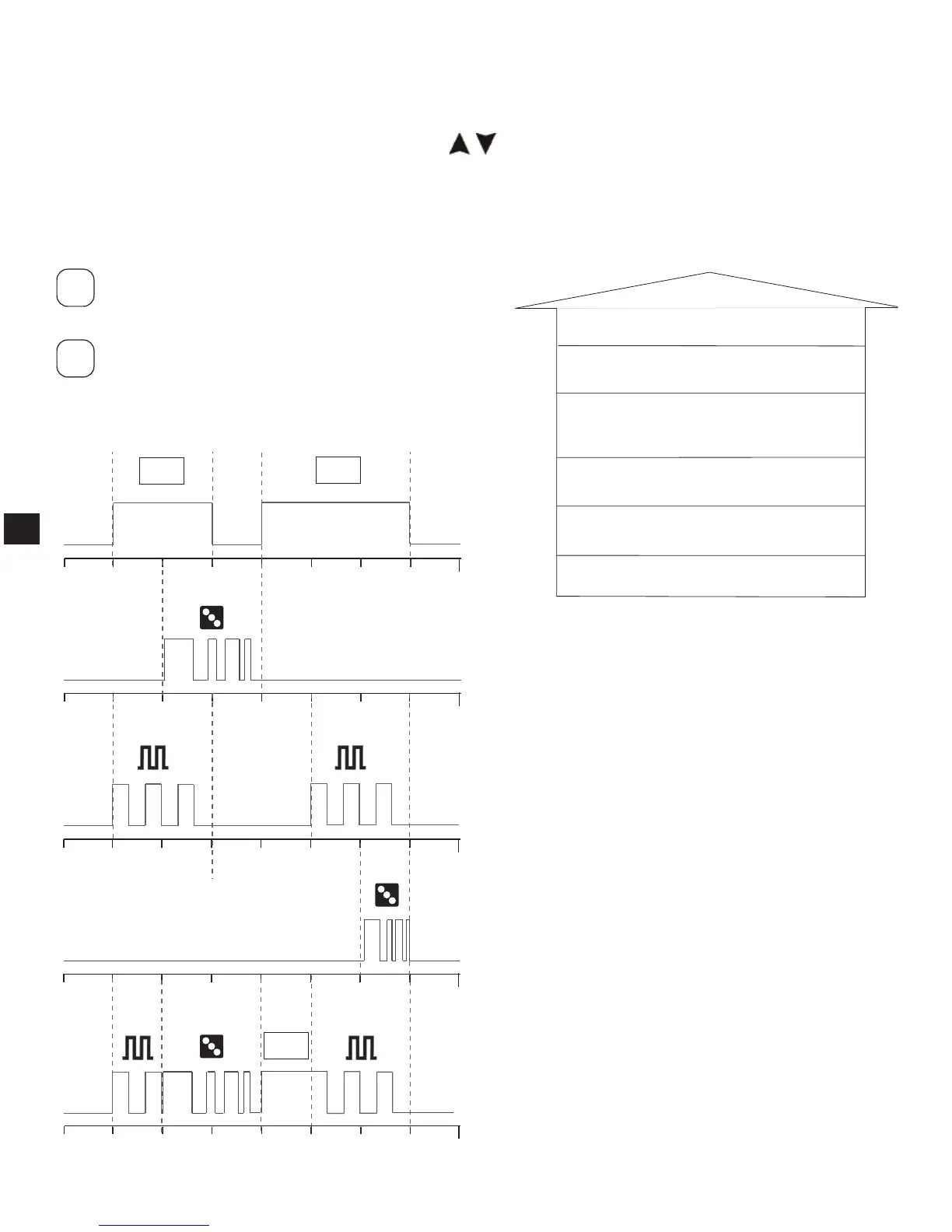

2-2 Forcing priority and programs
A priority is assigned to every type of
program, as shown alongside.
Take the priorities into consideration
when various types of programs are
programmed for the same period of time.
19
00
20
00
22
00
0
00
2
00
4
00
6
00
8
00
19
00
20
00
22
00
0
00
2
00
4
00
6
00
8
00
19
00
20
00
22
00
0
00
2
00
4
00
6
00
8
00
19
00
20
00
22
00
0
00
2
00
4
00
6
00
8
00
19
00
20
00
22
00
0
00
2
00
4
00
6
00
8
00
18
00
18
00
18
00
18
00
18
00
STD
STD
STD
P01: Standard Program
ON 19:00 - OFF 22:00
P02: Standard Program
ON 00:00 - OFF 06:00
P03: Random Program
ON 20:00 - OFF 00:00
P04: Cyclic Program
ON 19:00 - OFF 22:00
P05: Cyclic Program
ON 02:00 - OFF 06:00
P06: Random Program
ON 04:00 - OFF 06:00
Highest priority
Manual forcing
External input
External Memory Device
(EMD)
Holiday program
Cyclic/Random program
Standard program
i
i

ABB D1 Specifications

General

Mounting	DIN Rail
Protection Class	IP20
Type	Digital Timer
Output	SPDT Relay
Supply Voltage	24 - 240 V AC/DC
