36
IT
3-3 Programma Ciclico
Permette di eseguire una serie di impulsi entro un periodo definito.
Il tempo ON e il tempo OFF possono variare da 1 sec. fino a 23:59:59 ore
c1
P01
c1
P01
Per la programmazione vedi cap. 2-3.
In aggiunta impostare l’ora di1. TEMPO ON e TEMPO
OFF tramite tasti
.
8
00
12
00
ON
OFF

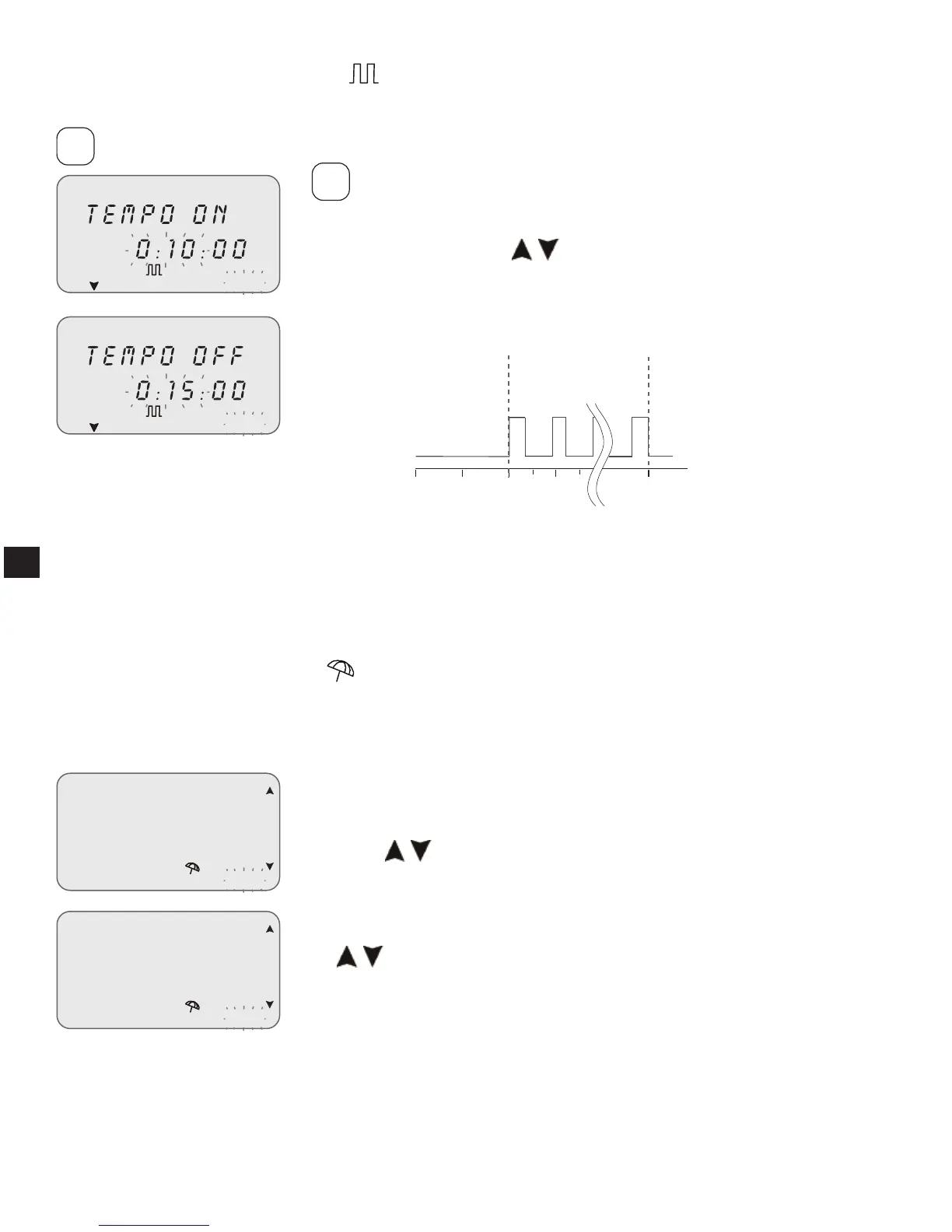

TEMPO ON
TEMPO OFF
Esempio impostazione:
Programma Ciclico ON ora 8:00, OFF ora 12:00;
Temporizzazione TEMPO ON 10 min e TEMPO OFF 15 min.
3-4 Programma Ferie
Permette di impostare un periodo di sospensione dei programmi, ad esempio per
chiusura estiva.
off 02:00
20/02/--
c1
P06
on 06:00
15/04/--
c1
P06
Selezionare il P Ferie come descritto al cap. 2-3.1.
Impostare l’ora d’inizio sospensione (OFF) tramite 2.
tasti
.
Confermare con 3. OK.
Impostare la data di inizio sospensione tramite tasti 4.
in formato gg/mm/--.
Impostare l’ora e la data di fine sospensione (ON) 5.
come nell’operazione da 2 a 4.
i
i
