44

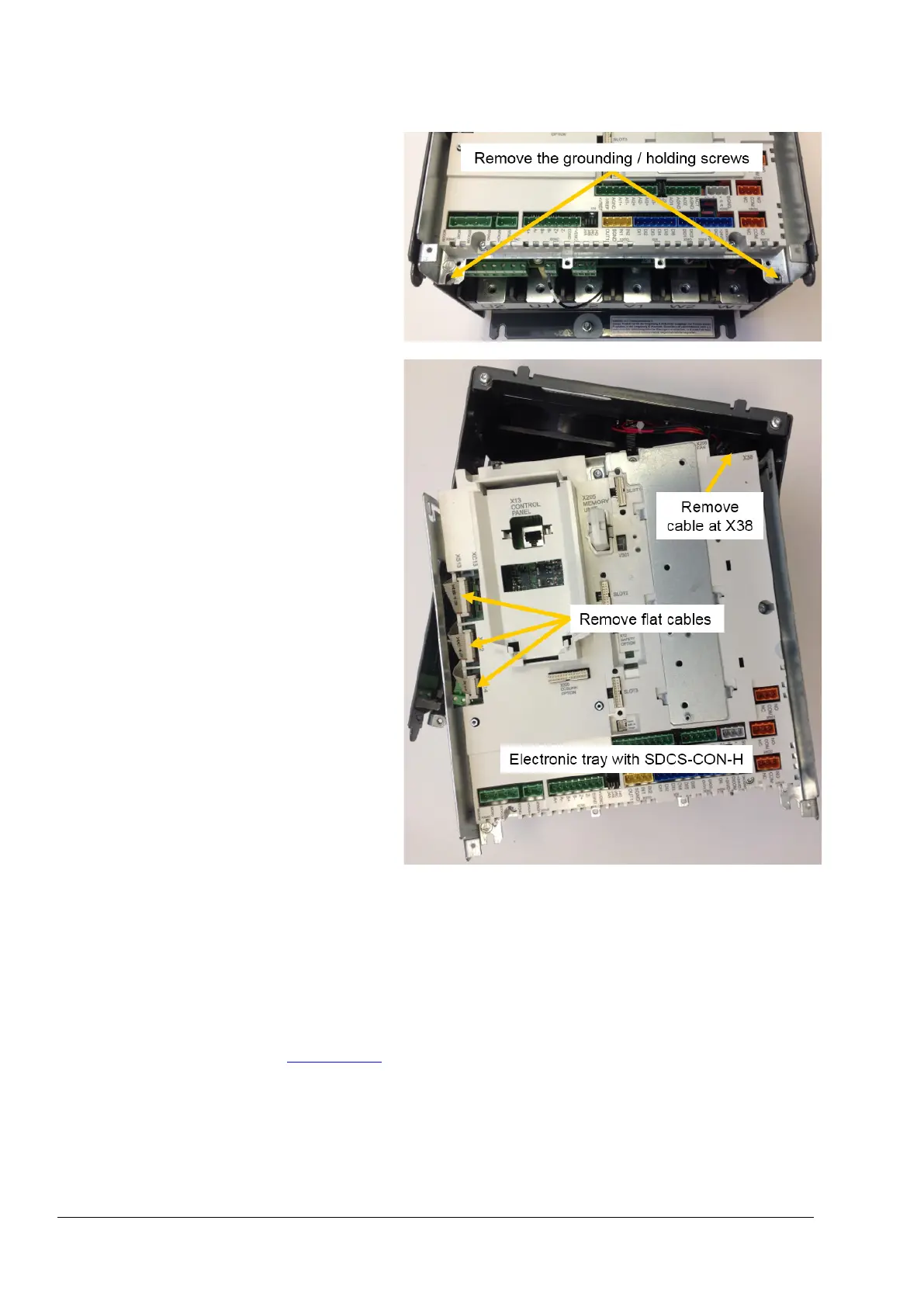

5. Remove the grounding / holding screws at
the electronic tray.
6. To unhinge the electronic tray including
the SDCS-CON-H pull it up and then out.
7. Before removing the tray completely
unplug the flat cables (X14, XC12, XS13)
and the cable connected to X38.
Install the new electronic tray with SDCS-CON-H
1. Reconnect the flat cables at the SDCS-CON-H (X14, XC12, XS13), the cable at X38 and re-hinge the
electronic tray.
2. Reconnect the grounding / holding screws at the electronic tray.
3. Reconnect all I/O plugs at the SDCS-CON-H.
4. Reinstall all plug in options (do not forget the screws), the memory unit, the design cover and the control
panel.
4. Set type code of the thyristor power controller
Follow the instructions in chapter Set type code.
Exchange SDCS-CON-H
3ADW000449R0101 DCT880 Service Manual e a
