ABB DCT880 - Electronic Tray Removal for Fuse Access (T5); Remove grounding;holding screws for tray (T5); Unhinge and remove electronic tray with SDCS-CON-H (T5); Remove SDCS-PIN-H cables and plugs (T5)

64

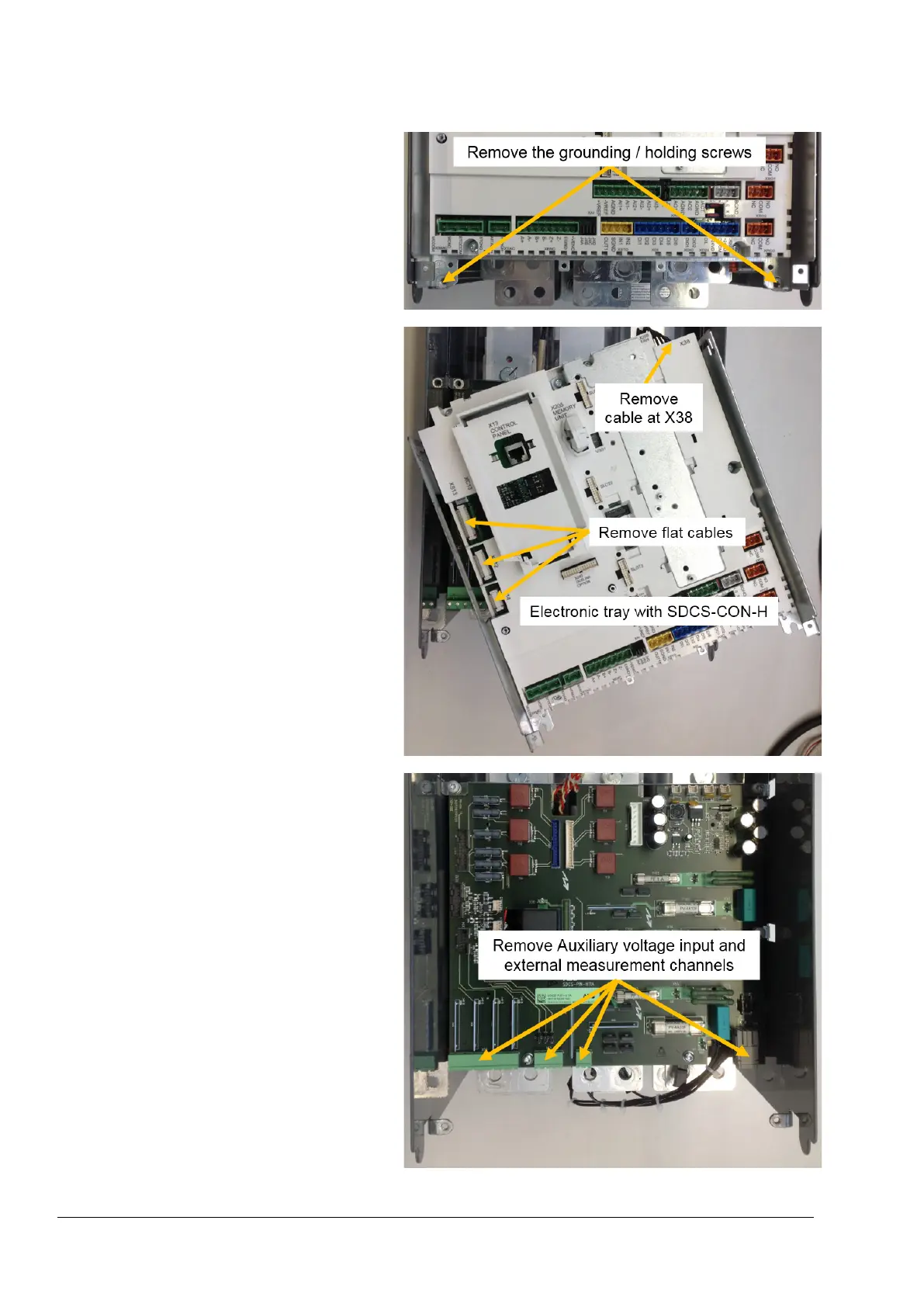

4. Remove the grounding / holding screws at
the electronic tray.
5. To unhinge the electronic tray including
the SDCS-CON-H pull it up and then out.
6. Before removing the tray completely
unplug the flat cables (X14, XC12, XS13)
and the cable connected to X38.
7. Remove following cables and plugs at the
SDCS-PIN-H:
− Auxiliary voltage input (X99).
− External measurement channels (X54,
X60, X65).
Service
3ADW000449R0101 DCT880 Service Manual e a
