ABB DCT880 - Final Component Removal (T5); Remove sensor, transformers, and holding screws (T5)

90 pages

To Next Page

To Previous Page

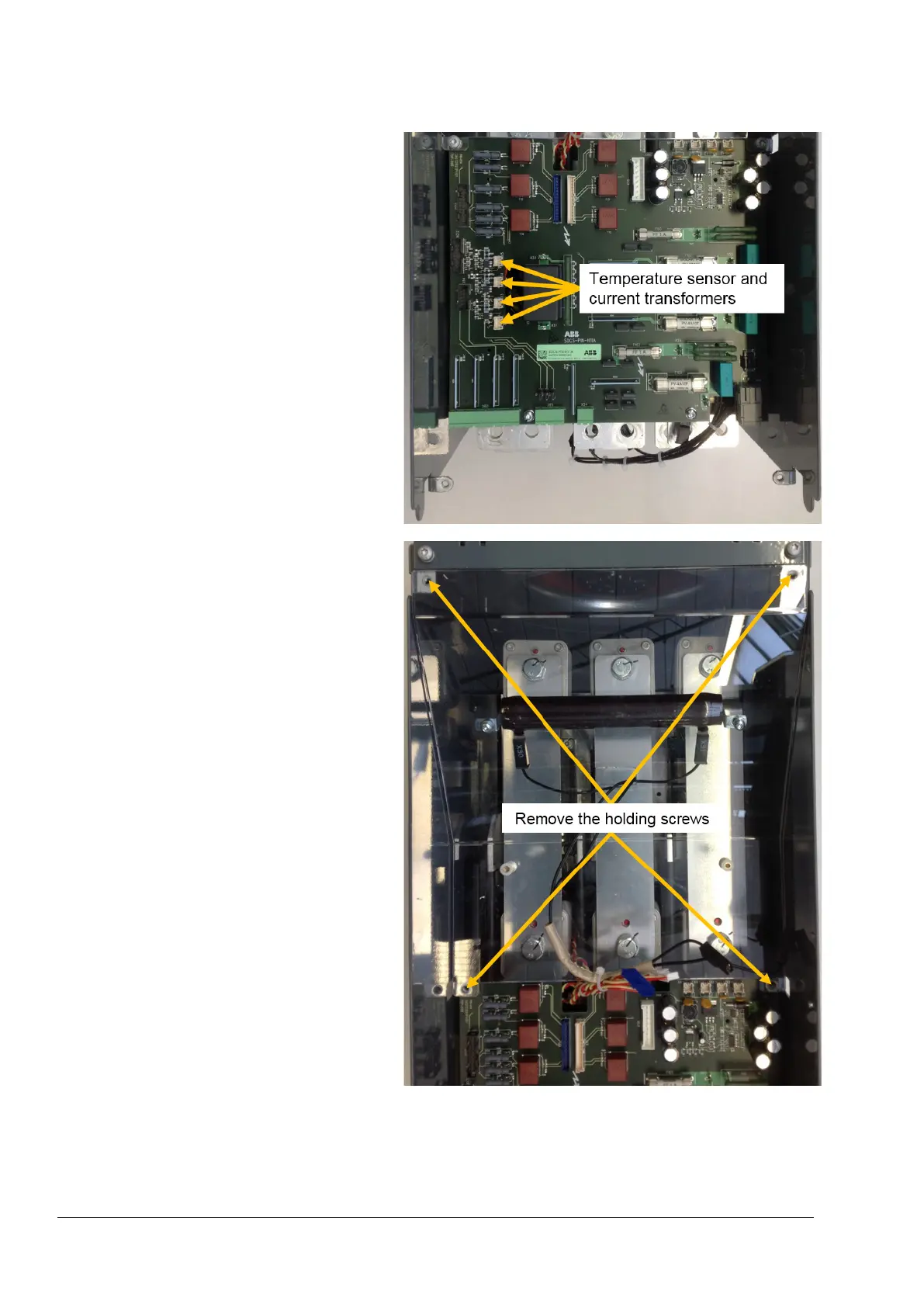

− Temperature sensor (X22).

− Current transformers (X3, X4, X5).

8. Remove the holding screws.

Service

3ADW000449R0101 DCT880 Service Manual e a
