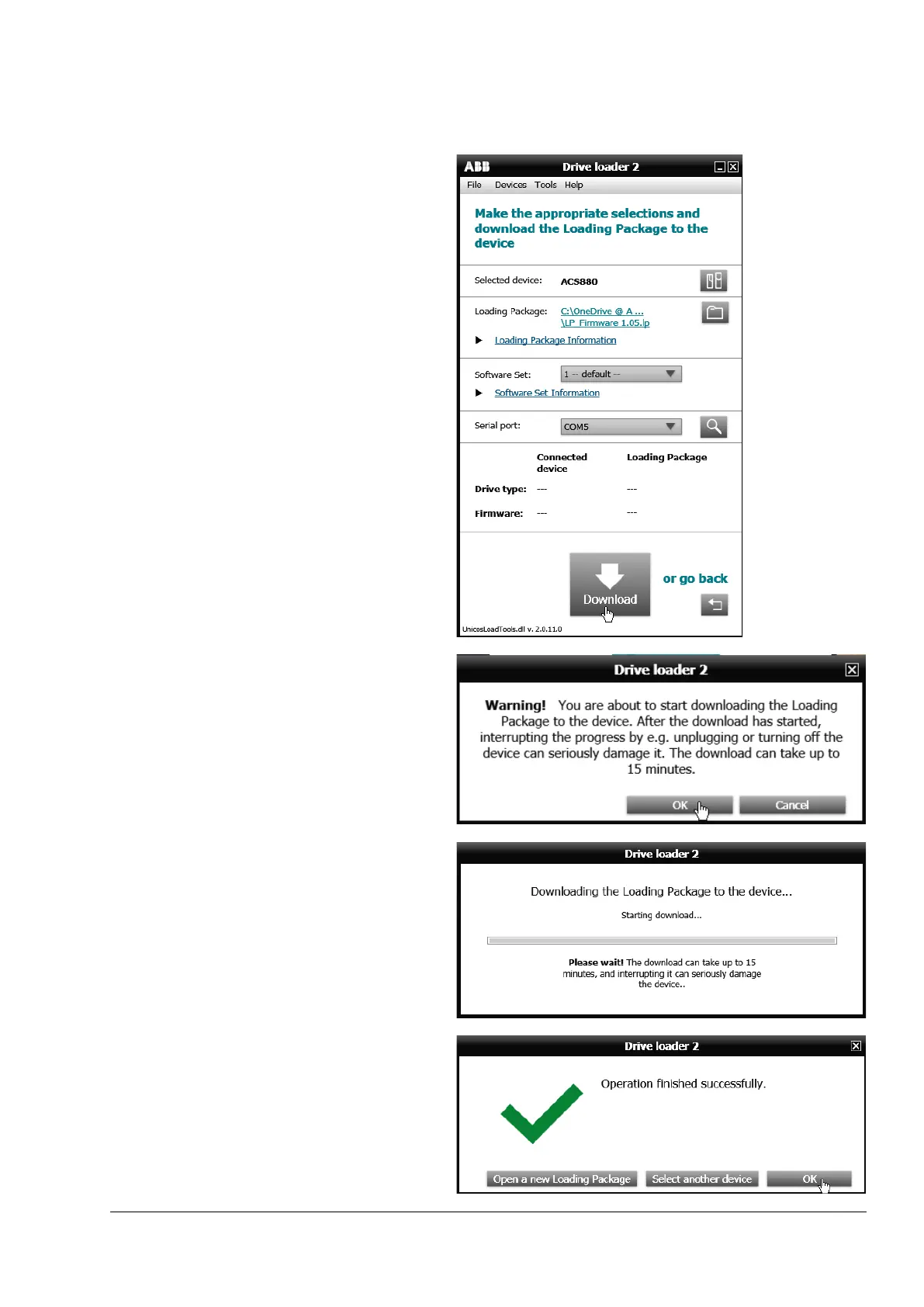

Continue firmware download

− Make sure the proper COM port (here

COM5) is chosen.

− Click Download.

− Click OK.

− Please wait and go for lunch!

− The firmware download is complete now.

− Click OK.
