4.2.3 Sea freight cases (wooden box)
Perform the following steps to unpack the UPS equipment from the sea freight package:
1. Disassemble the wooden box by removing all screws.
2. Remove the plastic film and bag from the UPS by cutting it, taking care not to damage the
cabinet; the edges are not protected.
3. Remove the accessories from their location. The standard set of accessories is: user manual,
2x painted sockets, screws, 4x feet and keys.
4. Tear out the 2x humidity absorbers. One is inside the front part of the UPS: open the door using
the keys to remove the absorber. The second absorber is at the back.
1) 2)

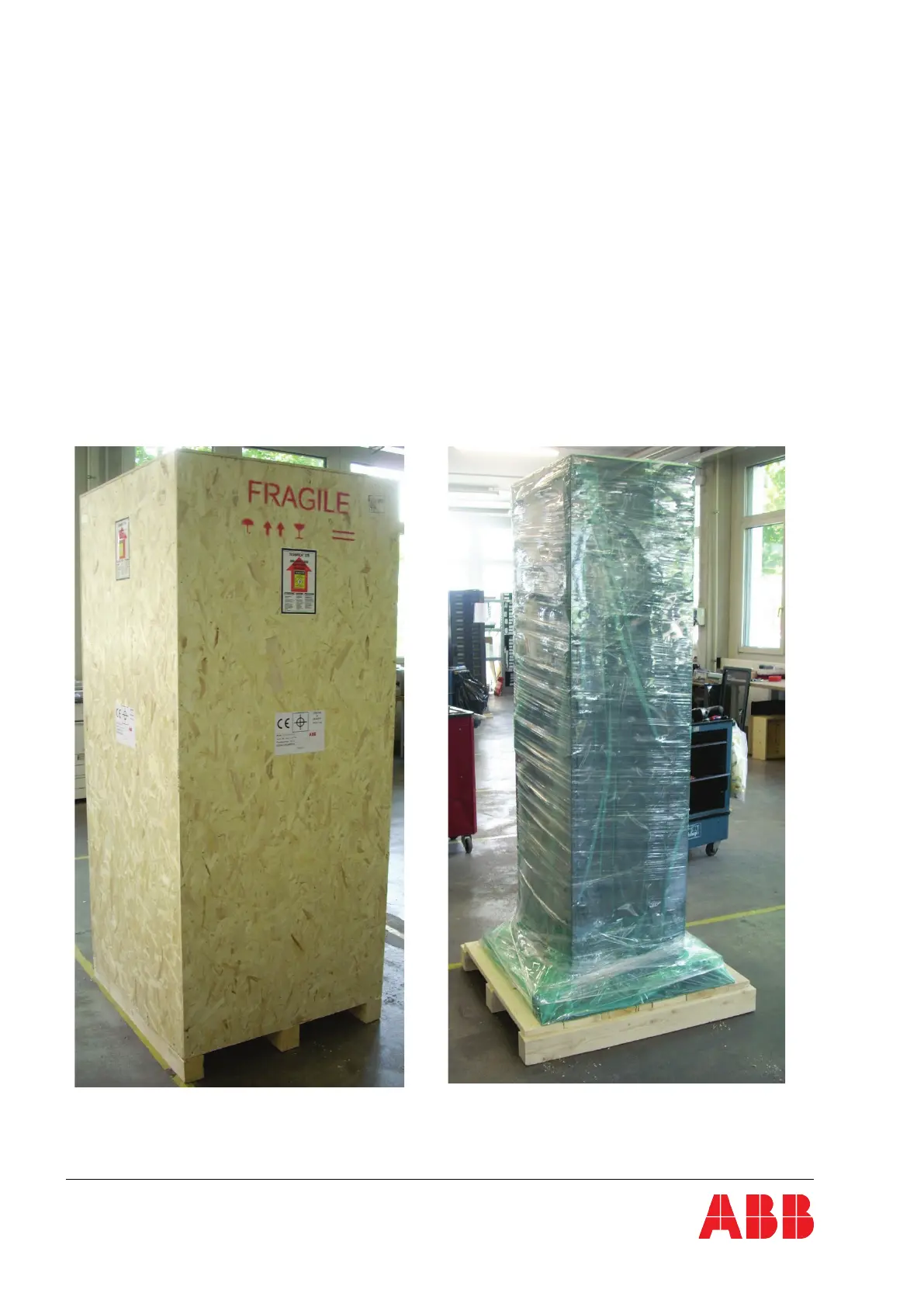

Fig 4.2.3-1: Sea freight cases unpacking sequence (Wooden box)
