ABB DPA UPScale ST200 - Block Diagram; Cable Sections; Single Input Feed (Standard Version)

Modifications reserved
Page 40/79
5.7.3 Single input feed (standard version)
5.7.3.1 Block diagram
Cable sections and fuse ratings recommended. Alternatively, local standards to be respected.

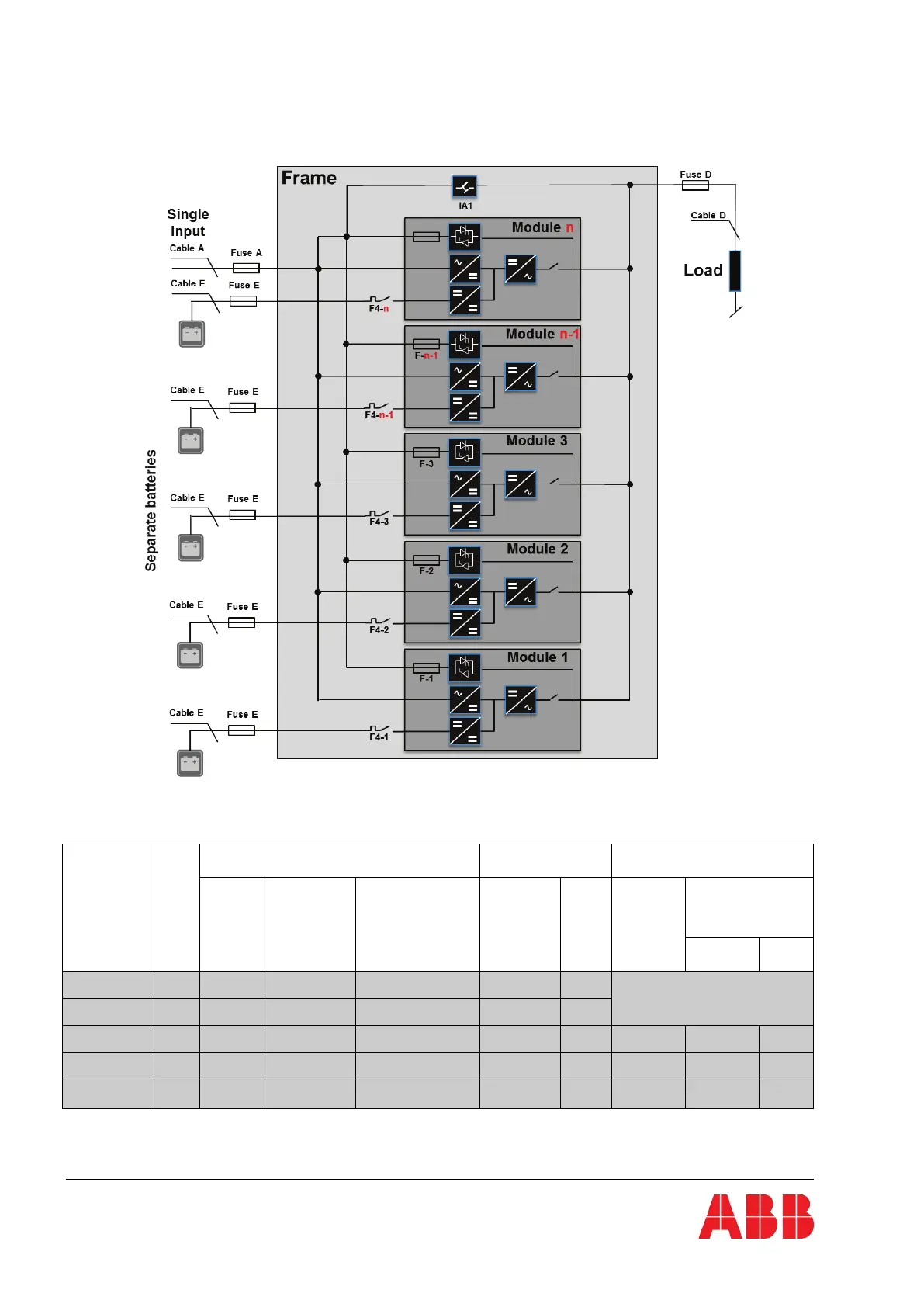

Fig 5.7.3.1-1: Single input feed block diagram
5.7.3.2 Cable sections
Frame type
Load
in kW
Input 3x400V/230V
Output 3x400V/230V @
cosphi 1.0
Battery
Fuse A
(Agl/CB)
Cable A (mm
2
)
(IEC 60950-1)
Max. Input Current
with battery charging [A]
Cable D (mm
2
)
(IEC 60950-1)
I nom
[A]
Fuse E
+ / N / -
(Agl/CB)
Cable E (mm
2
)
for CBAT UPScale 120
or 200 ONLY
+ / N / -
Com. Battery
Sep.
Battery
UPScale ST 40
40 3x80A 5x16 68 A 5x16 58 A
NOT ALLOWED
UPScale ST 60
60 3x125A 5x35 102 A 5x35 87 A
UPScale ST 80
80 3x160A 5x50 136 A 5x50 116 A 3x224A*1 3x95 *1 4x (3x10)
UPScale ST120
120 3x224A 4x95+1x50 (PE) 208 A 5x70 174 A 3x300A*1 3x150 *1 6x (3x10)
UPScale ST 200
200 3 x 350 A 5 x 185 333 A 5 x 185 290 A 3 x 450 *1 3 x (2 x 95)*1
5 x
(3x25)
*1 only valid for common battery use
