10 Multi-cabinet configuration
The DPA UPScale ST S2 may be paralleled to increase the power capacity up to 400 kW in steps of
10 or 20 kW. A maximum of 20 modules can be paralleled, into four frames.
The following system configurations are available:
DPA UPScale S2 ST40 ST60 ST80 ST120 ST200
Number of modules
per frame
2 3 4 6 10
Parallel frames
per system
4 4 4 3 2
Max number of
modules per system
8 12 16 18 20
Max. total system
capacity w/o redundancy
160 kW 240 kW 320 kW 360 kW 400 kW

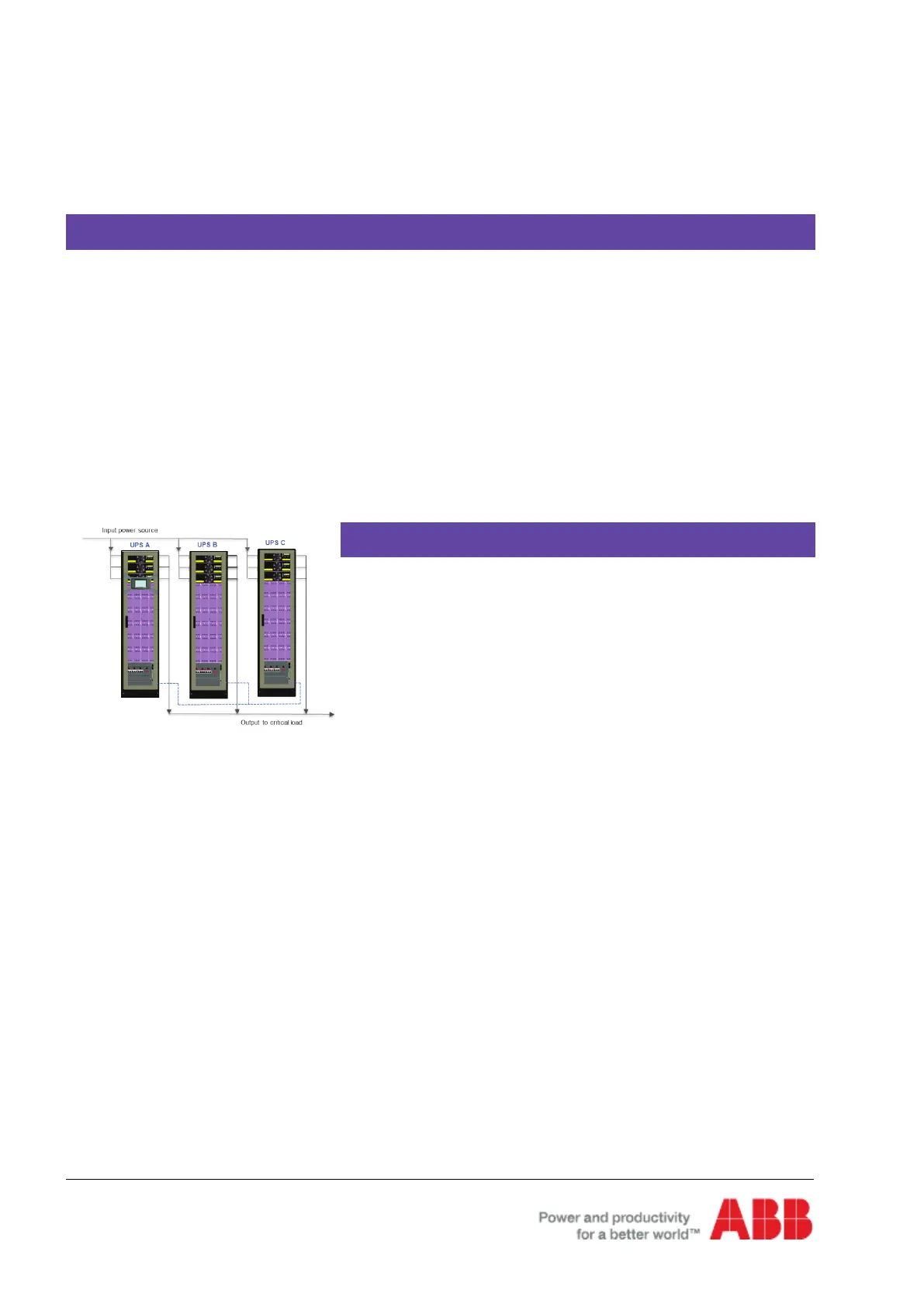

For a multiple-cabinet system, the following options are necessary:
UPS A UPS B UPS C
System graphical
display
X - -
Parallel interface
X X X
Parallel cable
X X -
