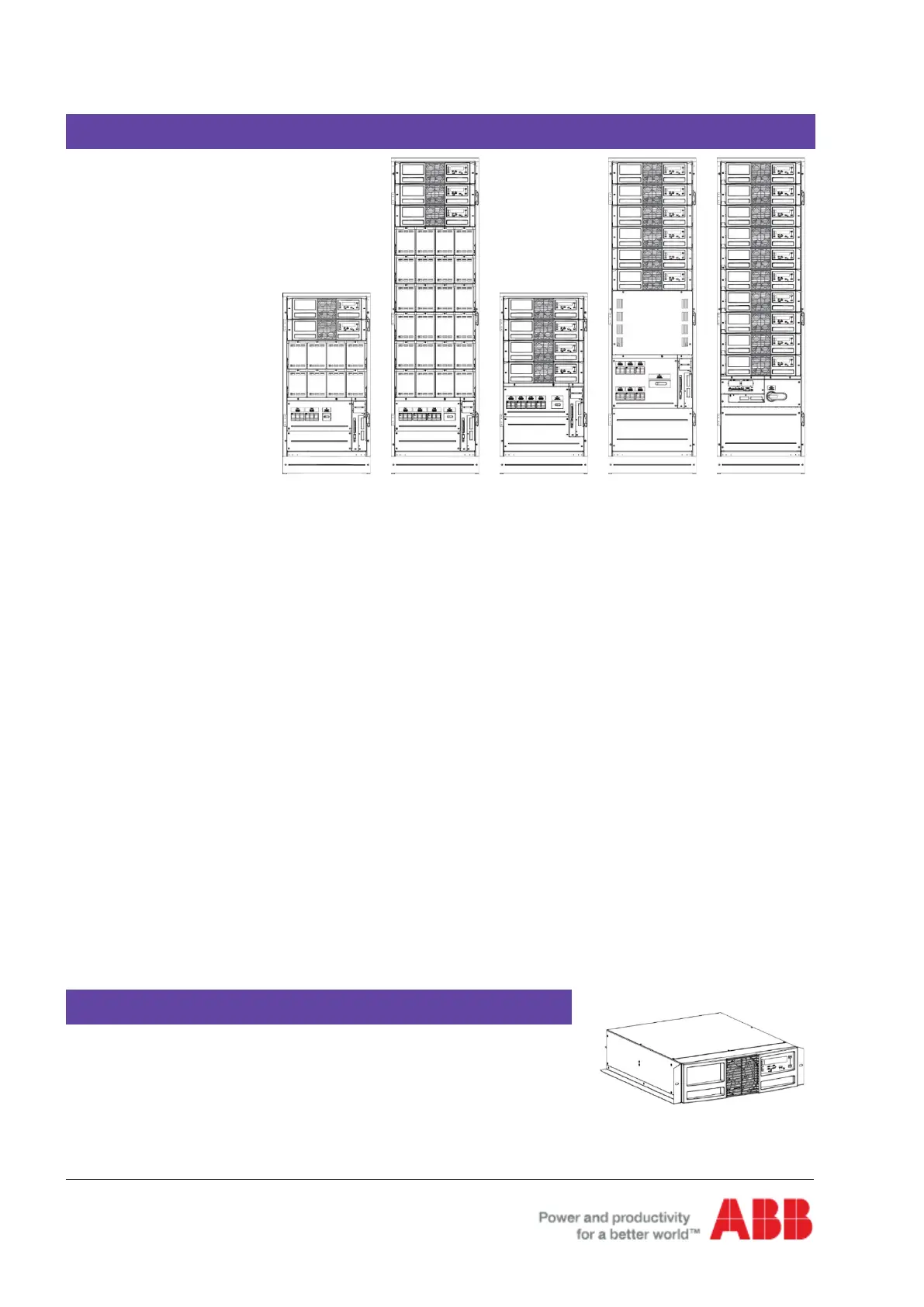

3 Mechanical characteristics
DPA UPScale S2 ST40 ST60 ST80 ST120 ST200
DPA UPScale ST S2
frames
System power
rating
kW
40 60 80 120 200
Max power modules
per frame
-
2 modules 3 modules 4 modules 6 modules 10 modules
Internal battery
blocks 12 V VRLA
up to
80 x 7 Ah
up to
240 x 7 Ah
- - -
Dimensions
(WxHxD)
mm
550x1135x775 550x1975x775 550x1135x775 550 x 1975 x 775
Weight empty frame
w/o modules
w/o batteries
kg
92 173 82 133 174
Weight of frame
with modules and
w/o batteries
kg
130 - 136 229 - 238 157 - 169 245 - 263 360 - 389
Audible noise at 1 m
from front, 100% /
50% load, 20 kW
modules
dBA
66 / 60
1)
1)
approx.
66 / 60
1)
68 / 62
1)
68 / 62
1)
70 / 64
1)
Color
-
RAL 9005
Access
Front access
Cable entry
From bottom
Protection class
IP20
Module type UPScale M 10 UPScale M 20
UPScale M10/M20 module
Module rated power kW
10 20
Dimensions
(WxHxD)
mm
488 x 132 x 540 (3HU)
Weight kg
18.6 21.5
Colors
RAL 9005
