58 EasyLine EL3000 Series Commissioning Instructions
Gas Connections for Magnos206 (Model EL3020)

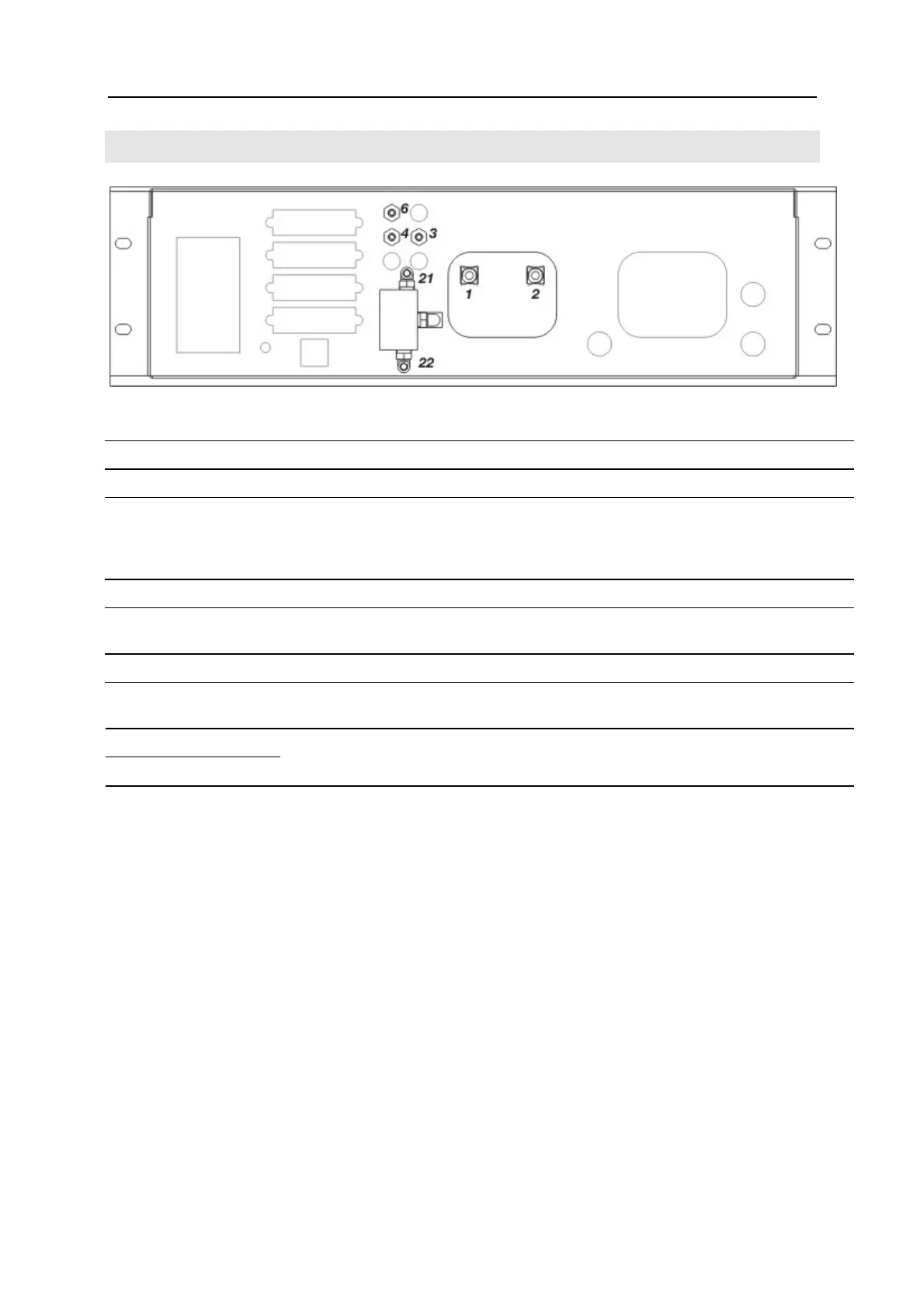

Magnos206: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
Design: 1/8 NPT female thread (stainless steel 1.4305/SAE 303)
Connection of flexible tubes: straight screwed fittings (PP) with nozzles for flexible
tubes with inside diameter = 4 mm (supplied)
Connection of pipelines: Threaded connections (not supplied)
3
Sample gas outlet with the option "Integrated gas feed", connected ex works to 1 Sample gas inlet
4
Sample gas inlet with the option "Integrated gas feed", only with flow sensor (without solenoid
valve)
6
Pressure sensor
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses
with 4 mm inner diameter (supplied)
21
Sample gas inlet
22
Test gas inlet
on the solenoid valve with option "Integrated gas feed" with solenoid valve, pump,
filter, capillary tube and flow sensor
Design: Screwed fittings with hose nozzles (PVDF) for hoses with 4 mm inner diameter
(supplied)
Note: The pressure sensor is installed as an option.
