Gas Connections for ZO23 (Model EL3020)

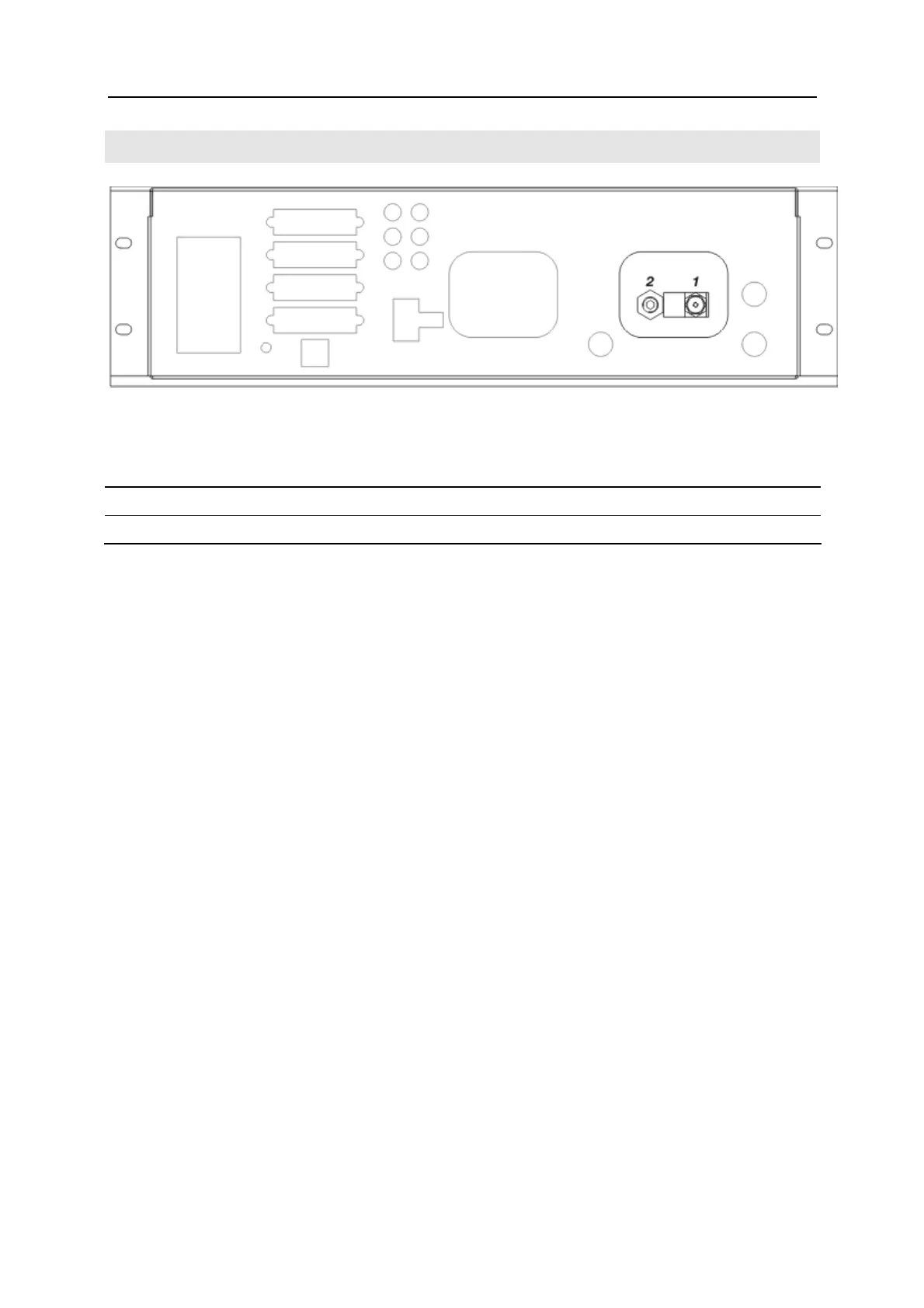

ZO23: Gas Connections
The sample chamber is connected to the sample gas inlet connection via a stainless steel tube on the
inlet side and to the sample gas outlet connection via an FPM hose on the outlet side.
1
Sample gas inlet (3 mm Swagelok
®
)
2
Sample gas outlet (1/8 NPT female thread for threaded connections – not supplied)
