Design and function
14 OI/PME/LME/EAN823/EBN853/EBN861-EN
2.1.2 EAN823, EBN853

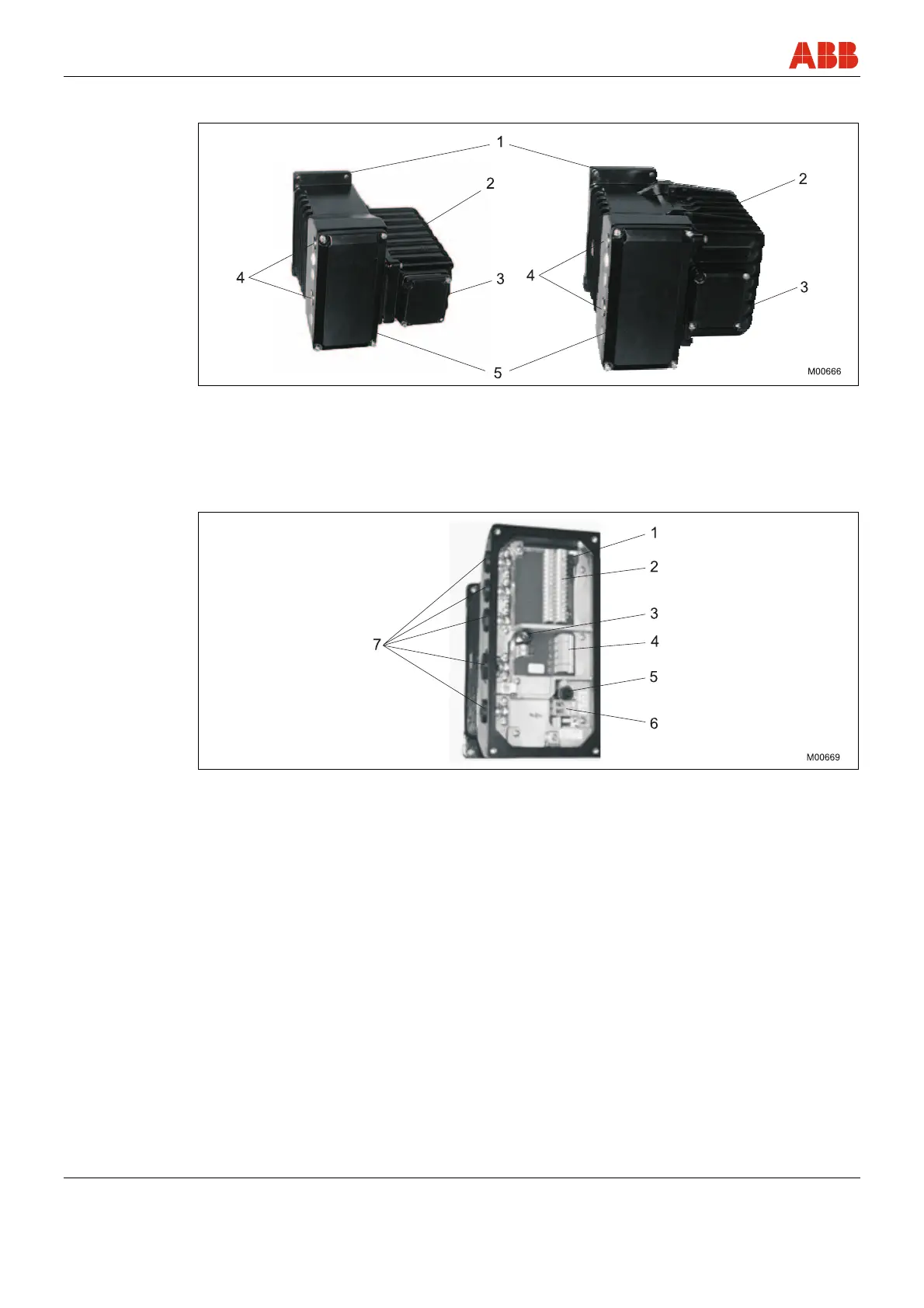

Fig. 6
1 Terminal box
2 Electronic unit cover
3 Cover for commissioning and service
field (ISF)
4 Holes for cable glands
5 Cover for connection space
Fig. 7: Connection area
1 Fuse protection against active feed at
20 mA setpoint input
2 Signal terminals
3 Fuse for heater
4 Motor terminals
5 Mains fuse
6 Mains supply terminals
