Electrical connections
20 OI/PME/LME/EAN823/EBN853/EBN861-EN
4.2 Connection of power / signal cables
Attention - Potential damage to cables and wires!
Damage due to improper installation.
Do not clamp individual wires under the clip.

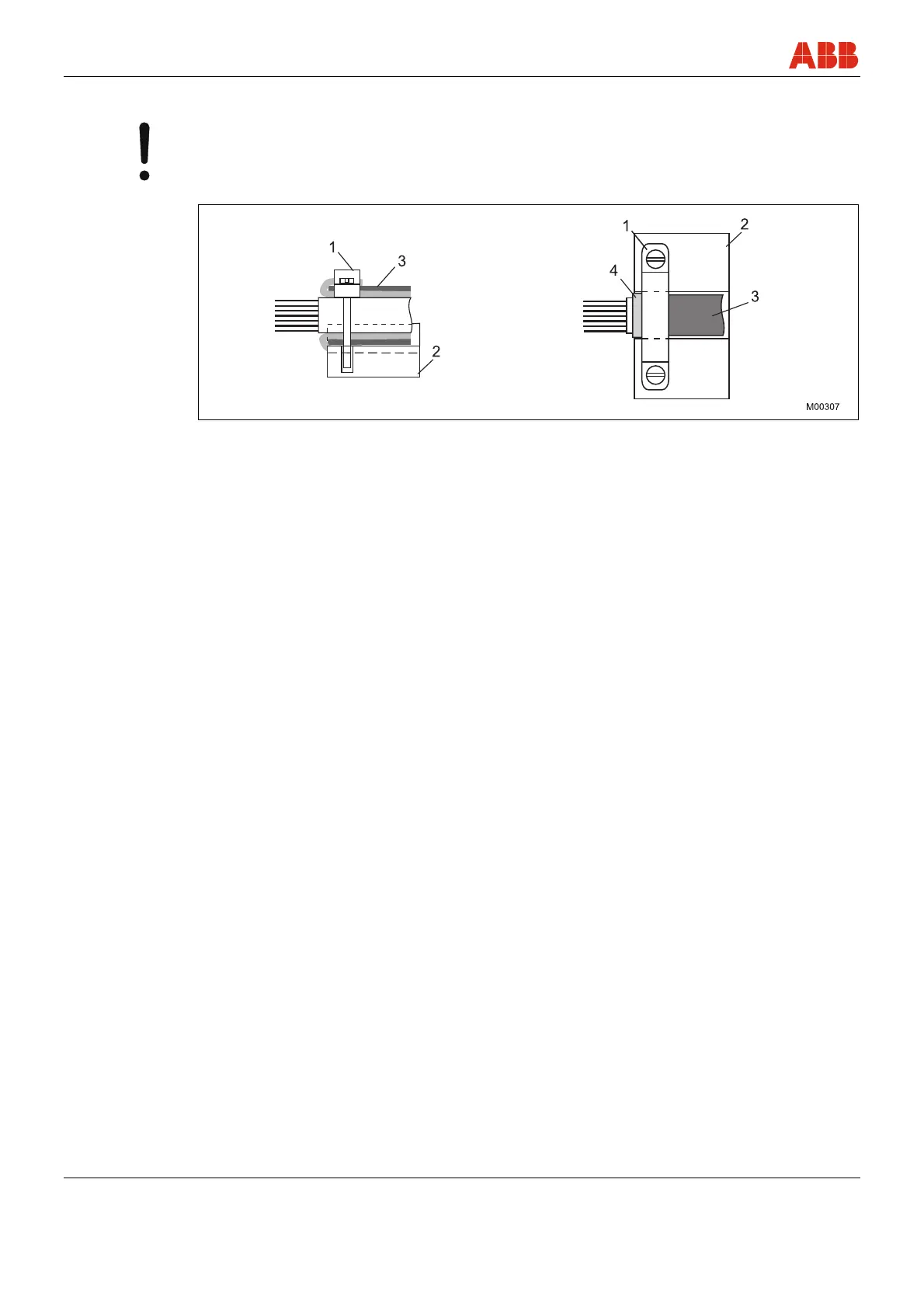

Fig. 10: Fitting the cable shield
1. Remove the cover from the connection area or disconnect the connectors.
2. Cut the cable sheath (3) to the required length.
3. Separate the shield and peel it back to its inner sheathing (4).
4. Push the cable through the cable gland and fasten it with the clamp (1).
5. Make sure that the cable shield is in contact with the clamp (1) and the electronic unit
housing (2).
6. Connect the cable as described in Chapter 4.4 “Terminal connection diagrams”.
7. Che
ck the cable connections for firm seating and fasten the cable gland.
8. Close the cover of the connection area or re-connect the connectors.
