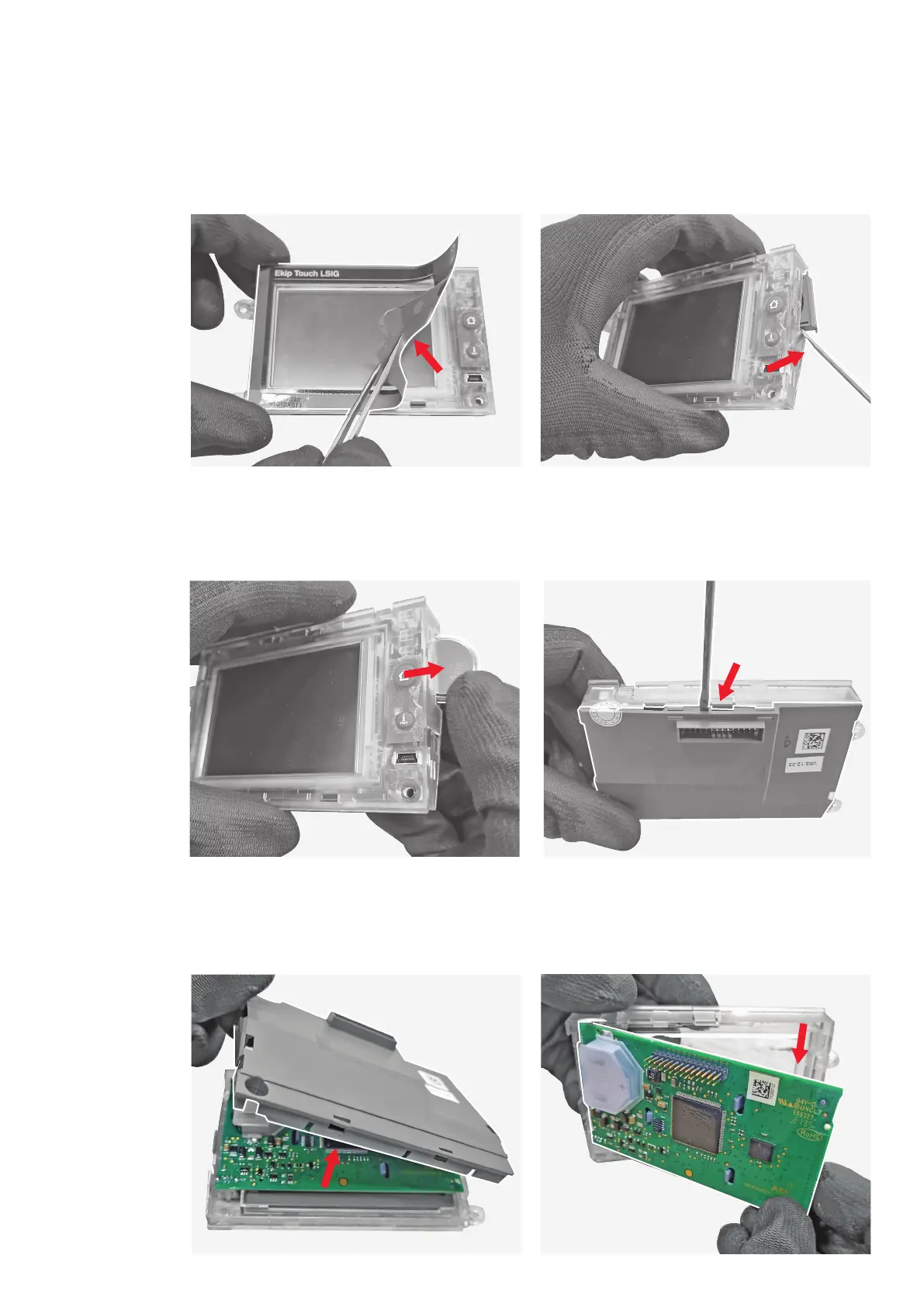

Disassembly instruction emaX 2 e6.2
63
Manually remove the battery.
65
Manually remove the HMI box from the display.
64
By means of the flat screwdriver unhook the
HMI box from the display.
66
Manually separate the display and the HMI LCD
cover.
62
By means of the flat screwdriver remove the
battery cover on the left side of the display.
61
By means of the cutter start removing the
trip unit front label and by means of the pliers
complete the operation.
