Disassembly instruction emaX 2 e6.2
95

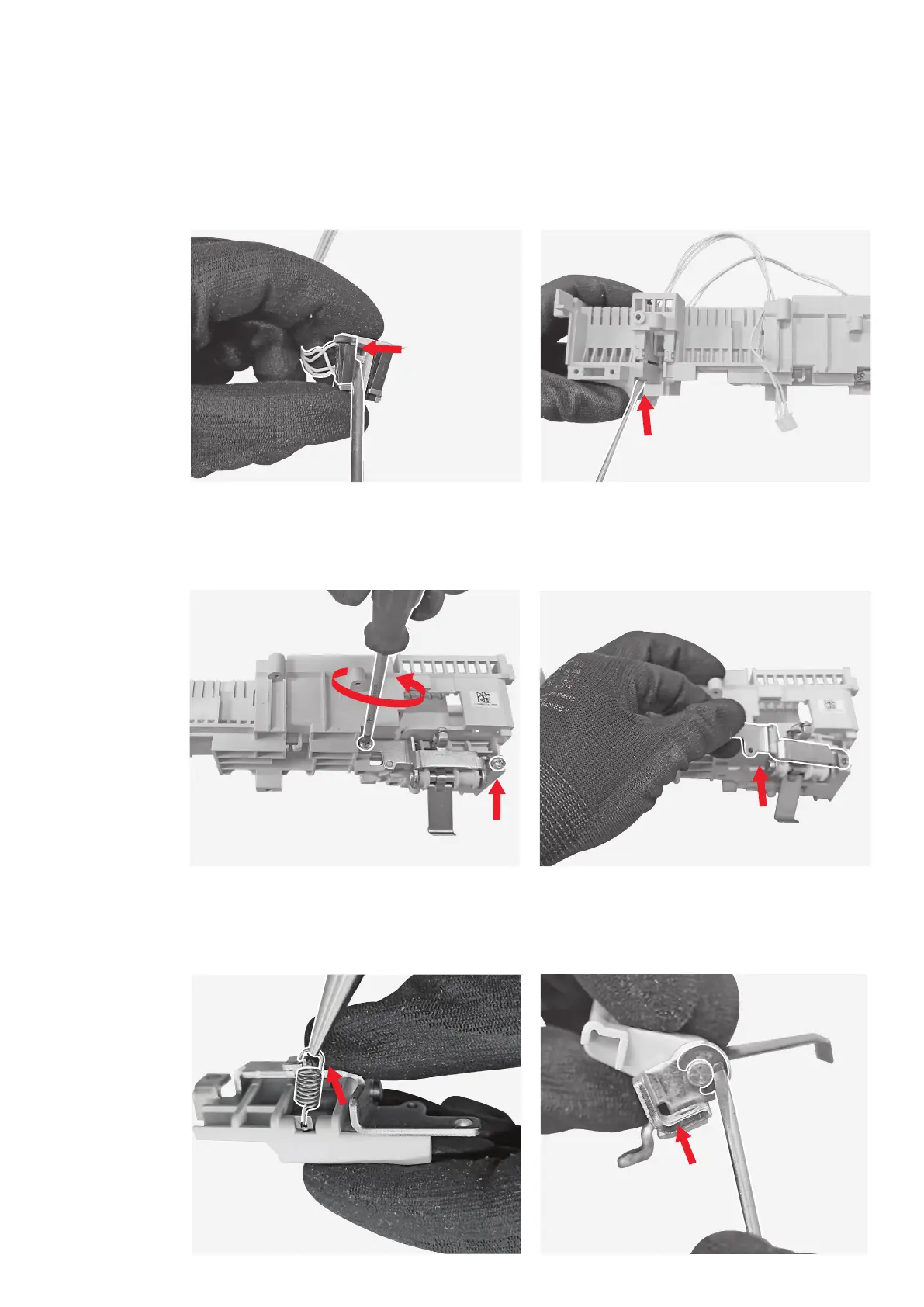

By means of the cross screwdriver unscrew
terminal box case.
97
By means of the pliers remove the spring
96
98
By means of the flat screwdriver remove the
94
By means of the flat screwdriver push the 2
connectors as indicated by the arrow and after
manually complete the removal.
93
By means of the flat screwdriver unhook the
2 microswitches from their support and after
separate the microswitches support from the
rest of the connector.
