64
INSTRUCTION HANDBOOK
242

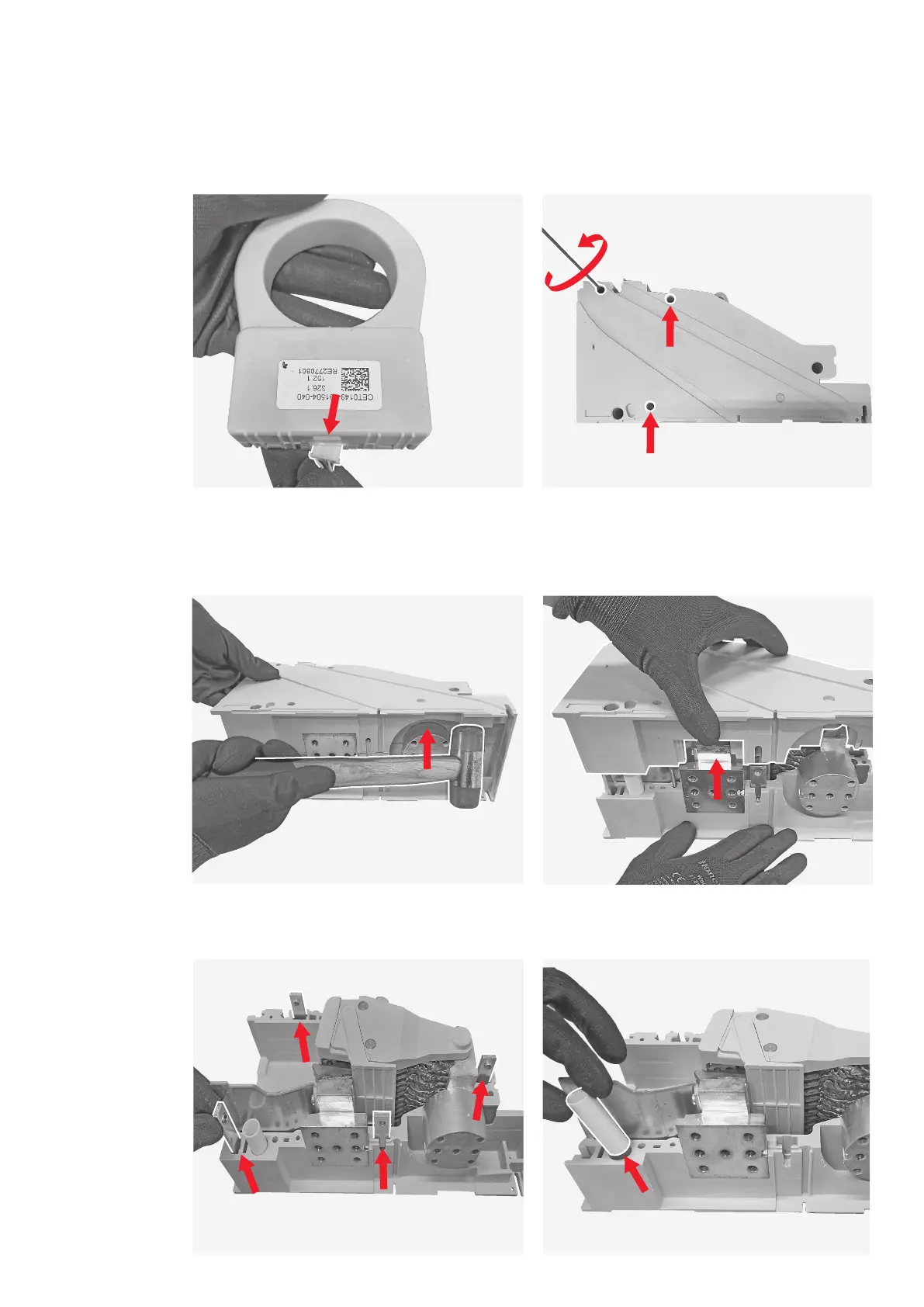

By means of the hammer start separating the
pole cases.
244
Manually remove the 4 plates.
243
Manually complete the separation operation.
245
Manually remove the bush.
241
By means of the torx key (size 25) unscrew the
3 screws located in the left side of the pole.
240
Manually unhook the cable from the sensor.
To Next Page
