65
Disassembly instruction emaX 2 e6.2
248

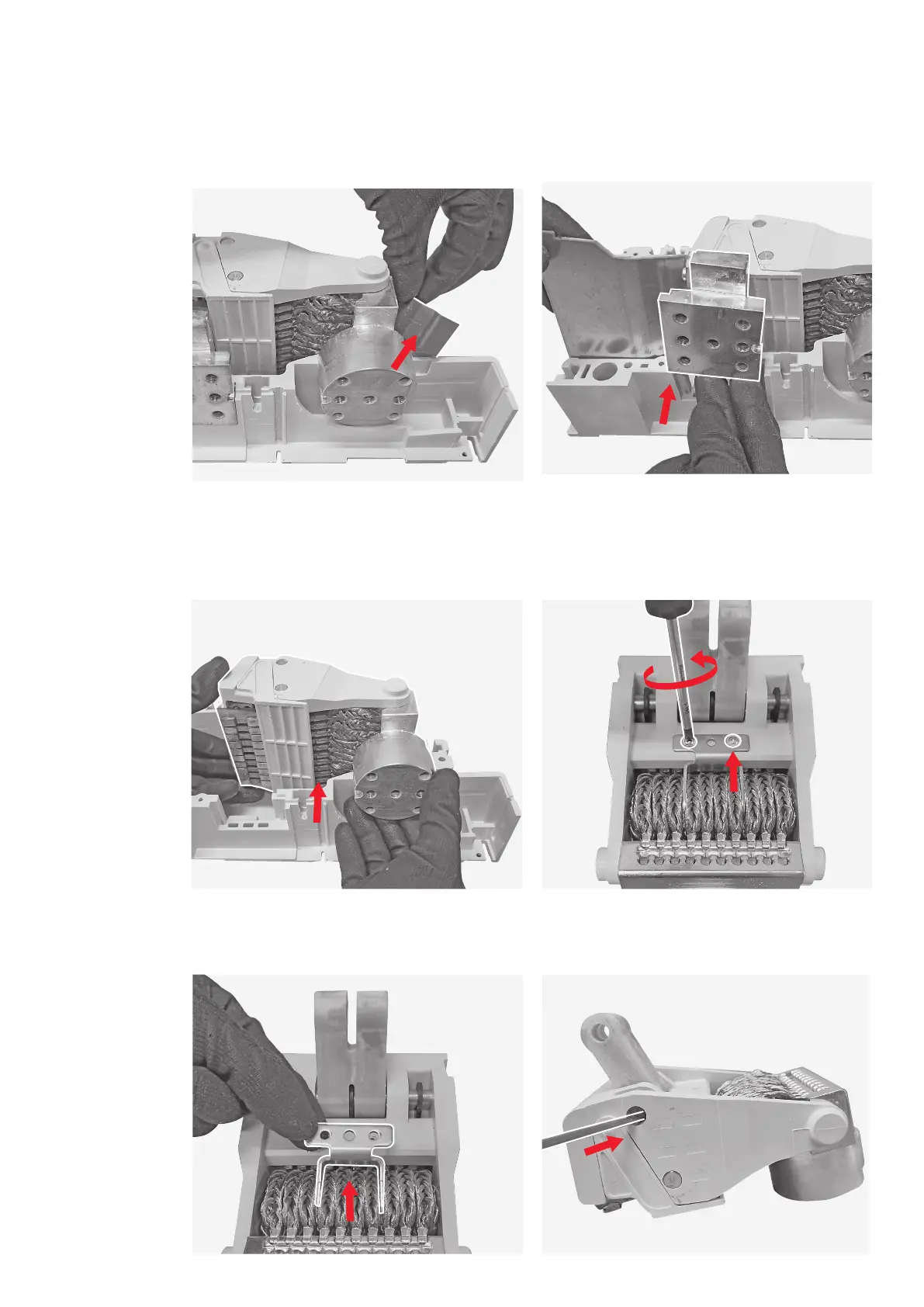

Manually remove the mobile contact.
250
Manually remove the jumper.
249
By means of the cross screwdriver unscrew
the 2 screws fixing the jumper to the mobile
contact assembly.
251
By means of the flat screwdriver push the pin
as indicated by the arrow.
247
Manually remove the fixed contact.
246
Manually remove the insulating protection.
