66
INSTRUCTION HANDBOOK
254

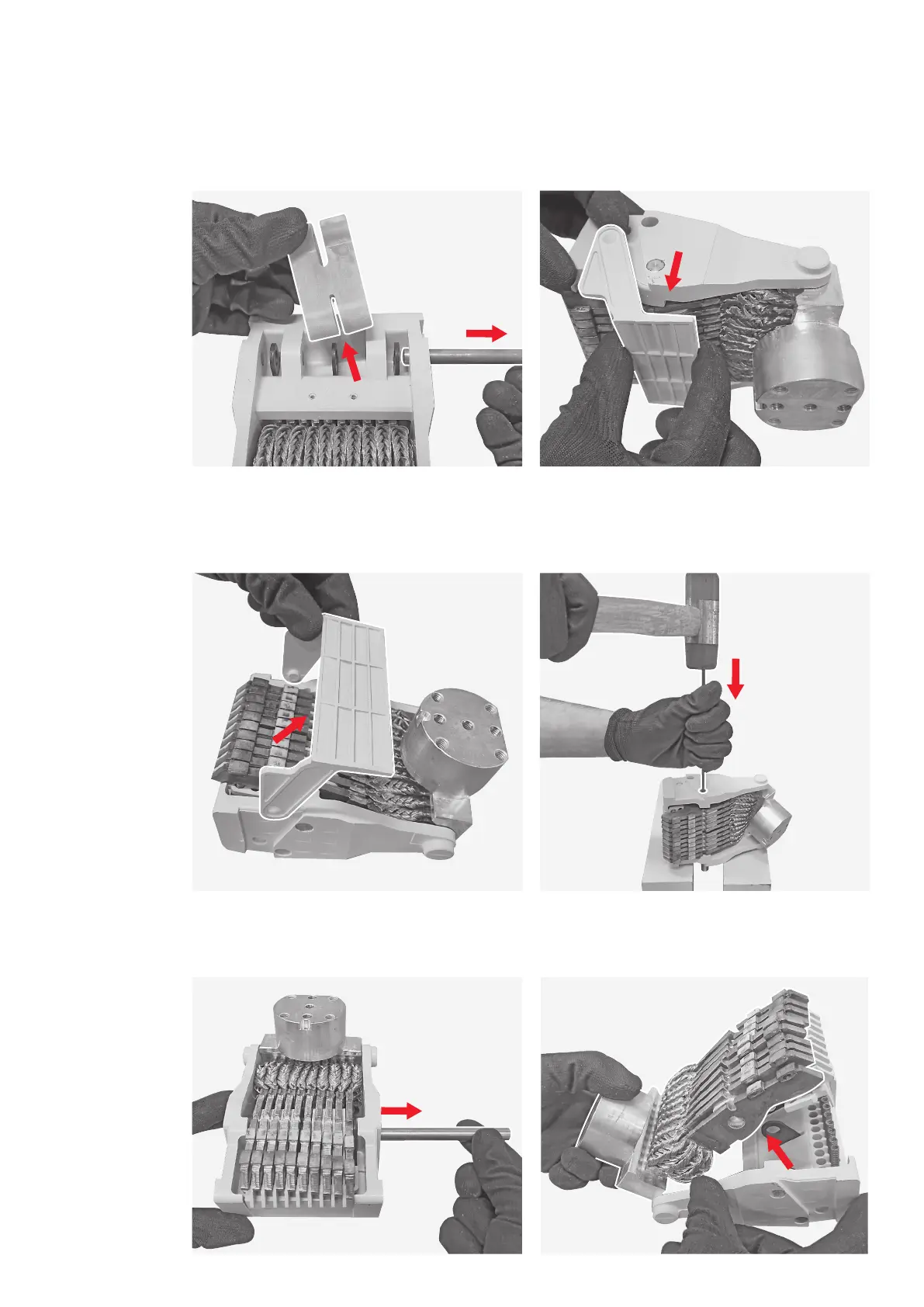

Manually remove the insulation protection.
256
Manually remove the pin.
255
Place the mobile contact assembly as shown in
the picture and then by means of the hammer
and of the rod push out the pin.
257
Manually separate the mobile contact from its
contacts holder.
253
Manually unhook both appendixes of the
insulation protection.
252
Manually remove the pin and the tie rod.
