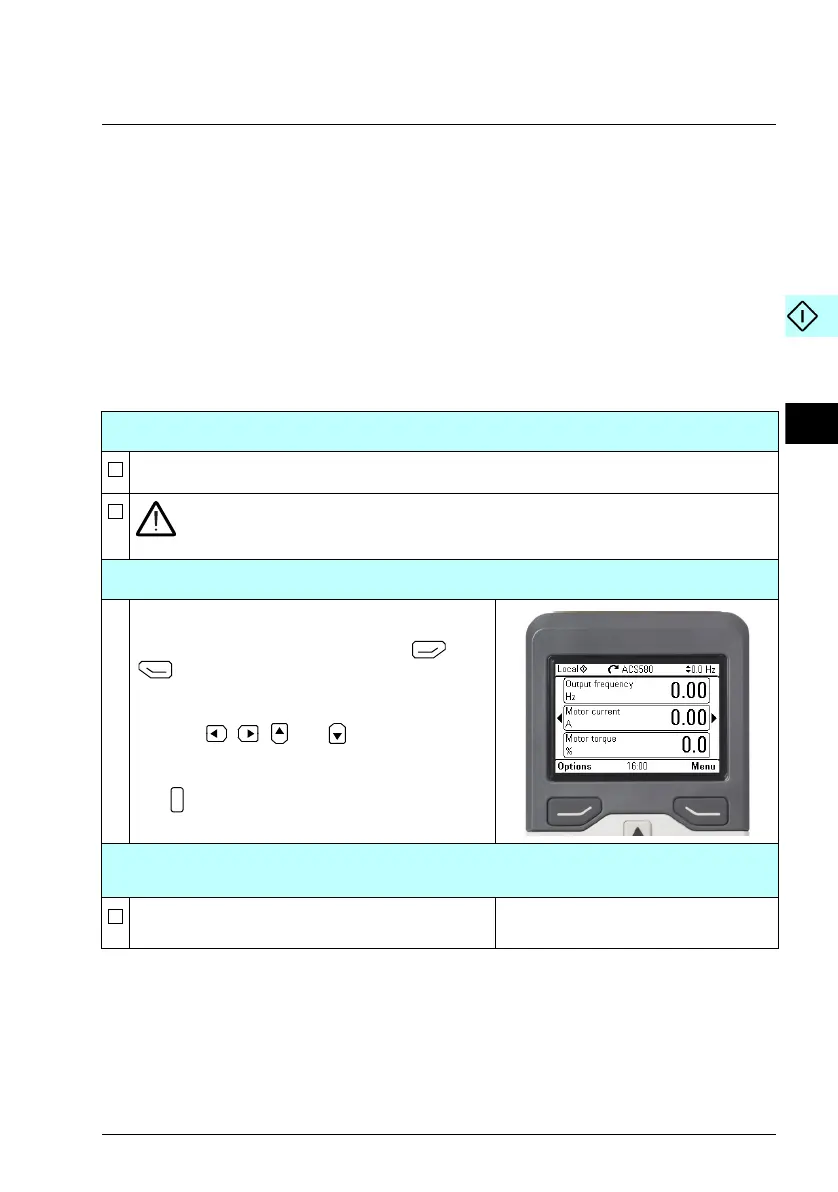

EN – Quick start-up guide 35
EN – Quick start-up guide
This guide describes how to start-up the drive using the First start assistant on the
assistant control panel.
Before you start
Ensure that the drive has been installed as described in chapter EN – R6…R9 Quick
installation guide on page 25 (frames R6…R9).
Start-up with the First start assistant on an assistant
control panel
Safety
Make sure that the installation work is complete. Make sure that cover of the drive and the
cable box, if included, are on place.
Check that the starting of the motor does not cause any danger. De-couple the
driven machine if there is a risk of damage in case of an incorrect direction of
rotation.
Hints on using the assistant control panel
The two commands at the bottom of the display
(Options and Menu in the figure on the right),
show the functions of the two softkeys and
located below the display. The commands
assigned to the softkeys vary depending on the
context.
Use keys , , and to move the cursor
and/or change values depending on the active
view.
Key shows a context-sensitive help page.
1 – First start assistant guided settings:
Language, date and time, and motor nominal values
Have the motor name plate data at hand.
Power up the drive.
To Next Page
