5.2 Cleaning the filter silencer
5.2.1 Filter silencer with tension band

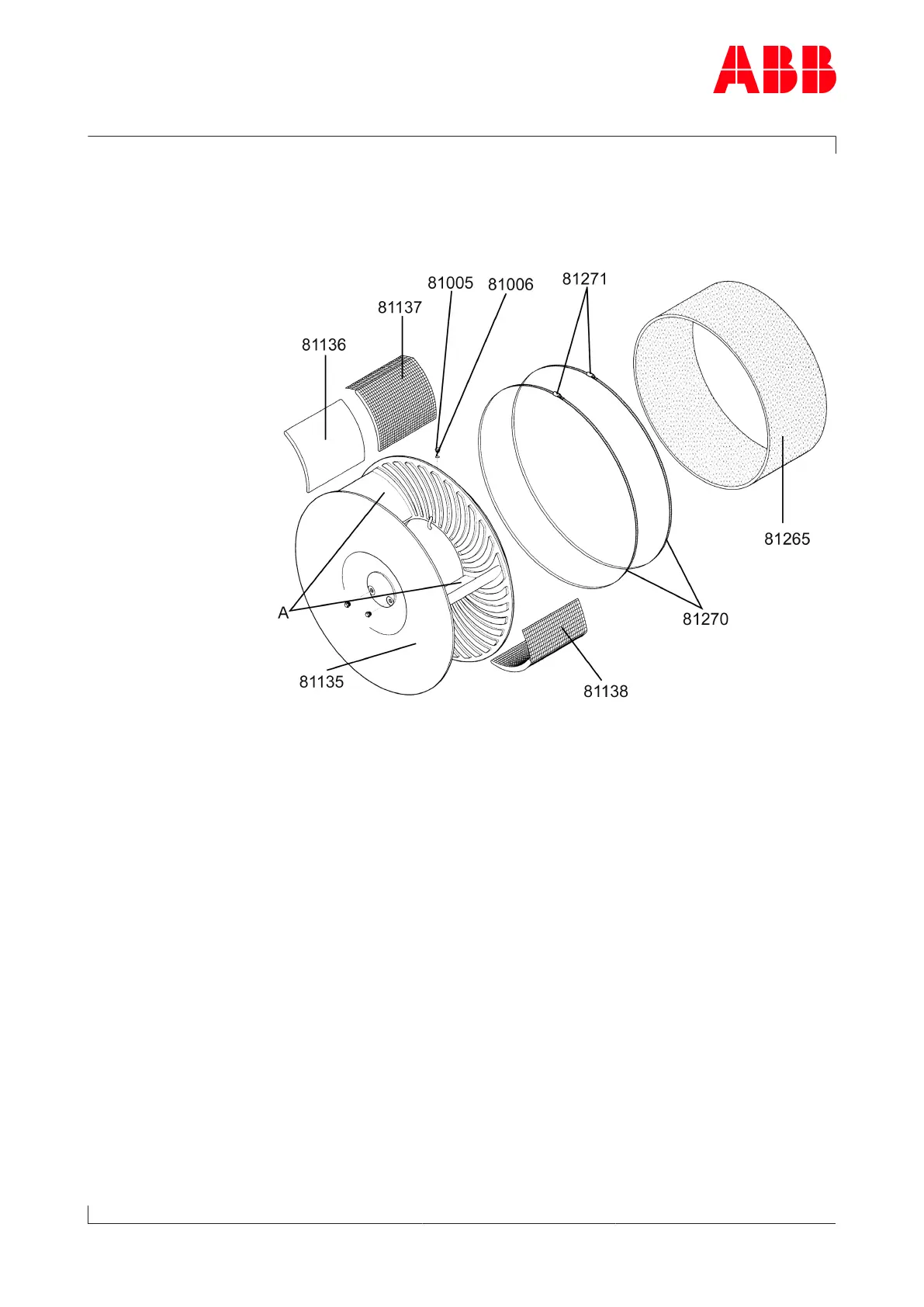

81265 Filter ring (if provided) 81138 Sheet-metal covering
81270 Tension band 81005 Screw plug
81271 Lock 81006 Gasket
81136 Absorption segment 81135 Filter silencer body
81137 Sheet-metal covering A Ribs
E Insert unit = absorption segment + sheet-metal covering fitted
Removing and cleaning the filter silencer
If provided
u Remove filter ring(81265).
u Rinse the filter ring(81265) using water with detergent additive or, if
it is heavily contaminated, soak it and carefully squeeze it out. Rinse
in cold water. Avoid high mechanical stress (do not use a water jet).
