ABB HT537477 - Layout and Function

Operation Manual / TPR56-F + TPR61-F
1 Preliminary remarks / 1.2 Layout and function
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018

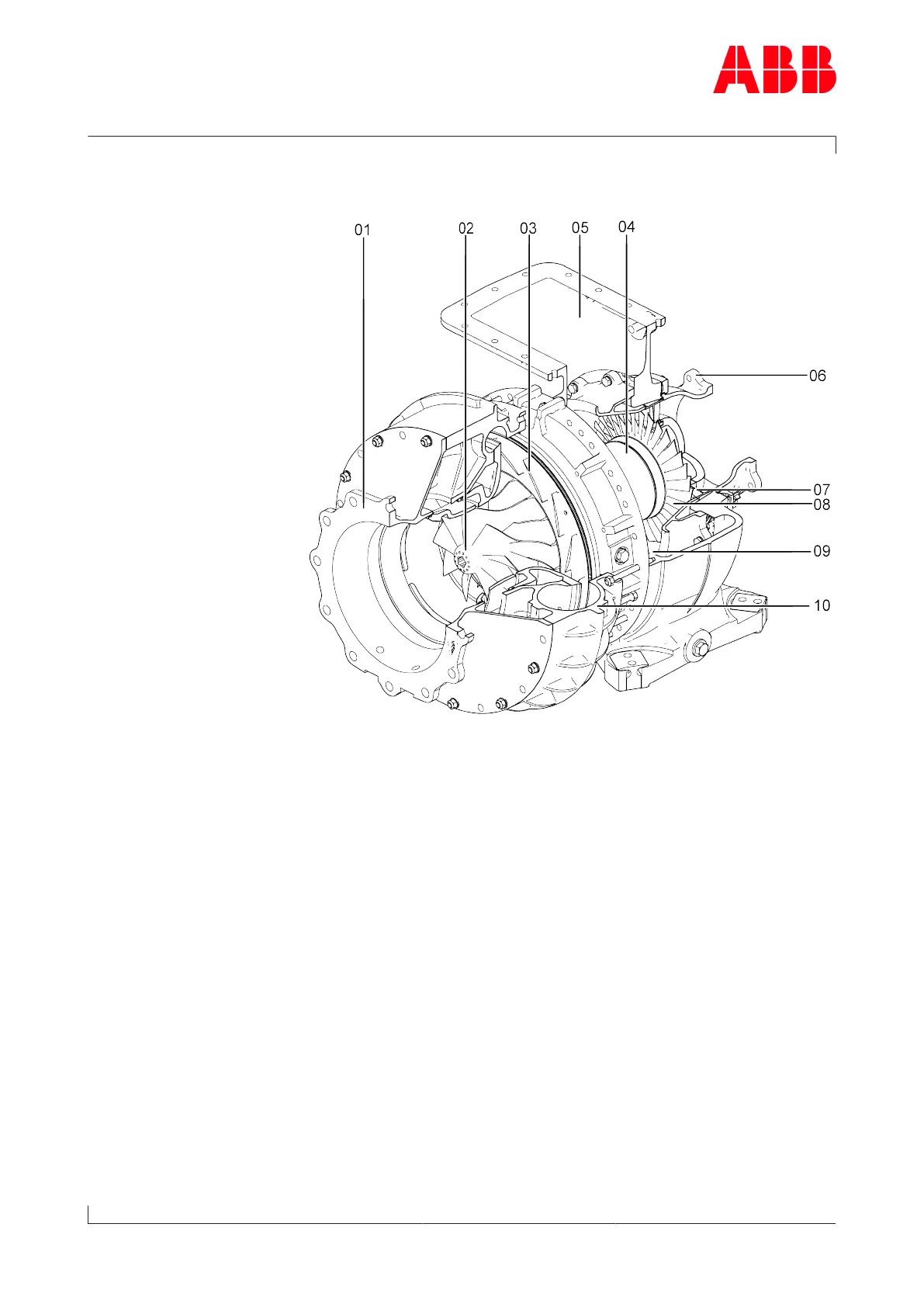

1.2 Layout and function
01 Suction branch / filter silencer 06 Gas inlet casing
02 Compressor wheel 07 Nozzle ring
03 Diffuser 08 Turbine
04 Bearing bush 09 Bearing casing
05 Gas outlet casing 10 Compressor casing
Page 4 / 79
