Operation Manual / TPR56-F + TPR61-F
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018
8.6 Dismantling and installing the turbine diffuser
and nozzle ring

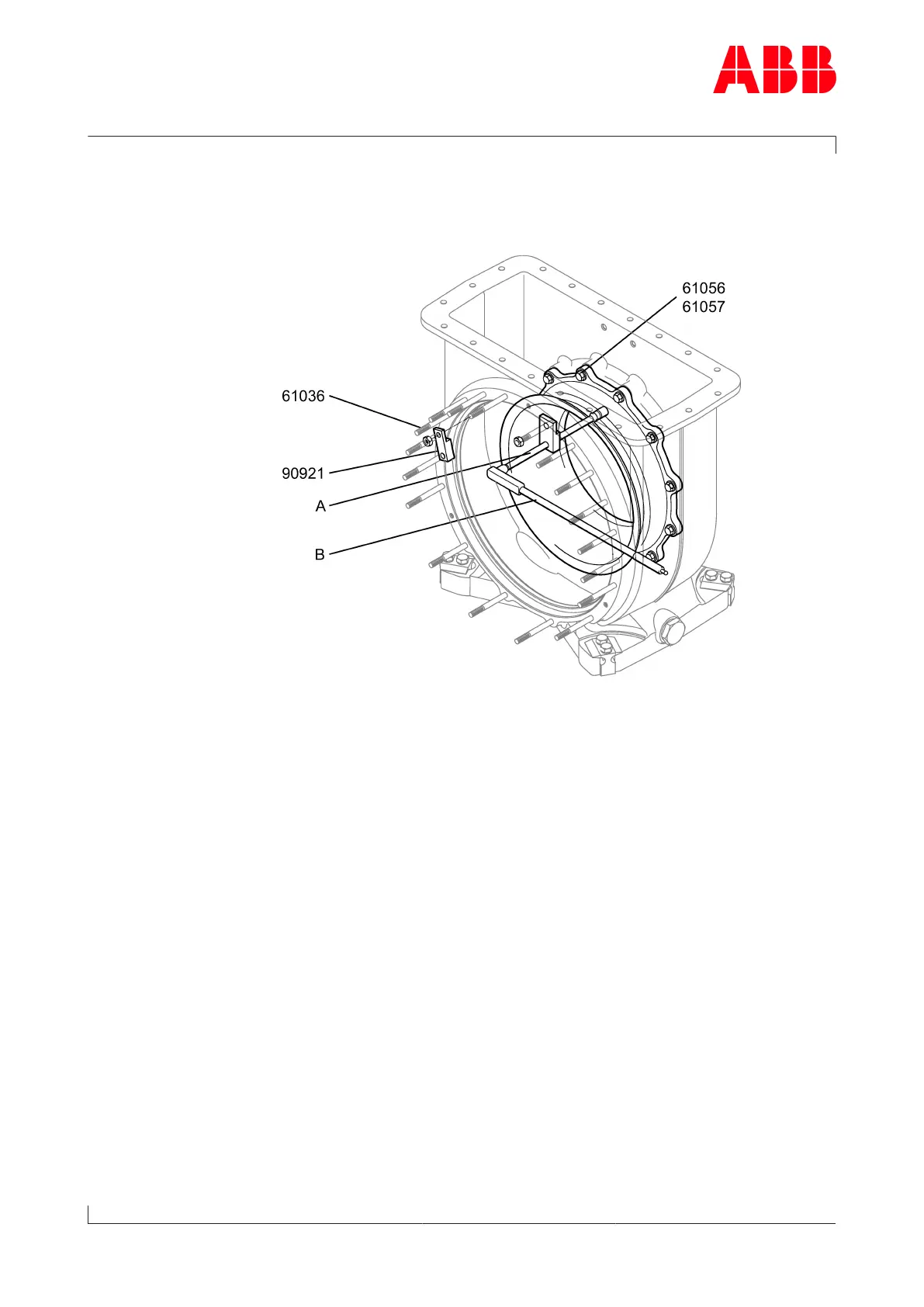

u Position clamp (90921) over stud (61036) until it lies flat against inner
radius of gas outlet casing.
u Insert extension (A) of torque spanner (B) through clamp hole and
only loosen screws (61056) one after other.
u Do not remove the screws (61056) and Verbus Ripp® washers (61057)
yet.
